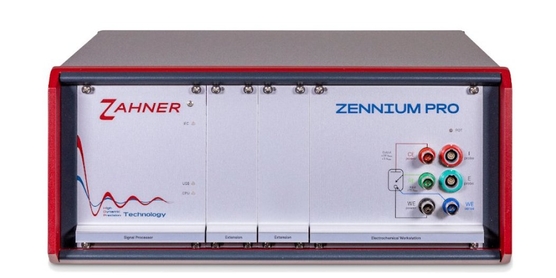

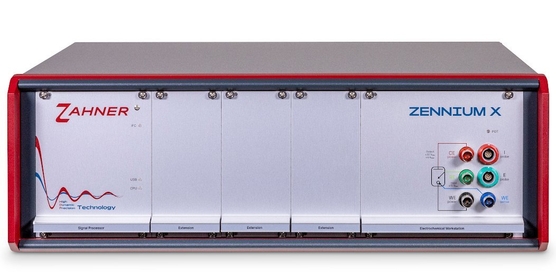

Our Electrochemical Workstations ZENNIUM X / ZENNIUM Pro / ZENNIUM  base on an universal and modular data acquisition system. Together with the THALES software package we offer all standard electrochemical methods at a mouse click.

slider

Photo-Electrochemistry

CIMPS is an universal photo- and spectro-electrochemical workstation for a wide field of applications. You can easily extend the basic CIMPS system with various options for special fields of photo-electrochemical research.

slider

Energy Storage & Conversion

Our power potentiostats, electronic loads and multi-channels acquisition systems provide a smart system for research and investigation on batteries, fuel cells and super caps.

slider

Corrosion

Electrochemical noise has become popular as a new method of corrosion detection and prevention. ZAHNER has developed the CorrElNoise® technique, the first method to obtain both, potential noise and current noise from one electrochemical source.

slider
profile_overview_image

PP242

The PP242 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±40 A at a voltage range of up to ±5 V. The total power dissipation of the PP242 is 200 W.

The PP-Series potentiostats are controlled by an EPC42, a plug-in module for the ZENNIUM-series potentiostats. Due to the built-in microprocessor, each EPC42 card can address up to four PPSeries potentiostats. Up to four EPC42 cards can be installed in an ZENNIUM-series potentiostat. In total, up to 16 PPs can be controlled by one ZENNIUM series potentiostat. Each potentiostat will hold the control parameters from one access to the next one, so that no potential or current disturbances can occur while scanning the potentiostats. If series measurements are performed with more than one PP-Series potentiostat, spectra are taken from all modules in a definable order.

The PP-Series is embedded completely in the ZENNIUM environment. Thus, all acquisition and analysis techniques that run on the ZENNIUM series potentiostats can be applied with the power potentiostats as well. The installation of one or more PP-Series potentiostat will upgrade your ZENNIUM to an even more versatile, high-current capable potentiostat.

Stand-alone operation: The PP-series potentiostat can also be used as a stand-alone potentiostat and can be used for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner-Lab software is used to control the potentiostat during the stand-alone operations.

The Zahner's power potentiostats can be incorporated in a python lab environment and can be used as stand-alone or in multi-channel configurations. Zahner's python repository is available for developing the python program.

Supported methods with ZENNIUM series potentiostats

Software module

Impedance spectroscopy

IM

Simulation & model fitting

SIM

Cyclic voltammetry

CV

Polarisation curves

I/E

Multicell multitasking voltammetry

CV

Arbitrary current/potential/time meas.

PVI

Capacity/potential measurements

C/E

Automatic series measurements

AS

  PP212 PP222 PP242 XPOT2
Potentiostatic modes potentiostatic, galvanostatic, pseudo-galvanostatic, off
Cell connection 2-, 3-, 4-terminal sensing
Ground reference grounded, floating
Compliance Voltage ± 20 V ± 10 V ± 5 V ± 25 V
Maximum current ± 10 A ± 20 A ± 40 A ± 0.5 A
Output power         200 W                   200 W                    200 W 12 W
Power dissipation         250 W                   250 W                    250 W
Input impedance         2 MΩ        100 MΩ                  100 MΩ 1 TΩ
Equivalent input noise < 10 µV rms
Memory 64 GB
Interface  USB, Ethernet*
Additional IOs 5*
Additional Analog Outputs 1*
Additional Analog Inputs 4*
Temperature sensor interface Type K*
Ambient temperature 10 °C - 30 °C 10 °C - 25 °C
Maximum humidity 60 %
Dimensions (H x W x D) 160 x 364 x 378 mm3 160 x 185 x 327 mm3
Weight 10.2 kg 4.6 kg
Zahner-Lab / SCPI
ADC resolution 24 bit
Voltage input resoluiton 1.192 µV         0.596 µV            0.596 µV             0.596 µV
Current input resolution         5.96 nA                 5.96 nA              5.96 nA      59.6 fA
DAC resolution 18 bit
Voltage output resolution 76.3 µV     38.14 µV            38.14 µV                 38.14 µV
Current output resolution          3.8 µA                    3.8 µA                3.8 µA 3.18 nA
Thales XT
ADC&DAC resolution 16 bit
Voltage resolution in/out 250 µV         125 µV                125 µV               125 µV
Current resolution in/out        6.25 µA                 6.25 µA               6.25 µA 12.5 pA
Impedance frequency range  10 µHz - 200 kHz
Impedance range       1 µΩ - 1 kΩ1          1 µΩ - 1 kΩ1        1 µΩ - 1 kΩ1
100 mΩ - 1 GΩ
1Impedances below 1 m must be measured galvanostatically.
* Hardware feature will be unlocked in future with a free software update.
