External Potentiostat Controller

EPC42

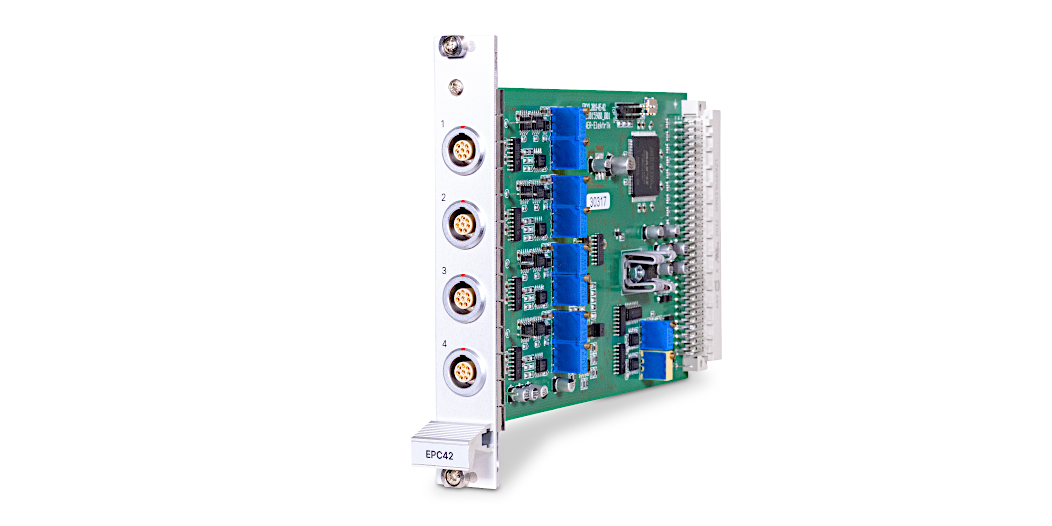

EPC42 card
The EPC42 is the link between the ZENNIUM potentiostat and the power and auxiliary potentiostats or electronic loads. One EPC42 card can address up to four PP/EL/XPOT devices sequentially. Up to four EPC42 cards can be installed in a ZENNIUM X and ZENNIUM PRO potentiostat. In total, a ZENNIUM series potentiostat can be simultaneously connected with up to 16 external PPs/ELs, which can be controlled sequentially.
  • Control up to 16 external potentiostats and loads

Specifications

Channels
4
Socket
4x Lemosa EGG.1B.308.CLL
Control voltage range
±4 V
Control voltage resolution
16 Bit
Supported external devices
all EL-Series, PP-Series, XPOT and Noise Probe
Maximum EPC42 supported
4 (16 channels)
Channels
4
Socket
4x Lemosa EGG.1B.308.CLL
Control voltage range
±4 V
Control voltage resolution
16 Bit
Supported external devices
all EL-Series, PP-Series, XPOT and Noise Probe
Maximum EPC42 supported
4 (16 channels)

Request a quote

Is this the right product for you? Contact our sales team to get further information about our products and their suitability to your individual applications.
