Thermocouple and Sensors

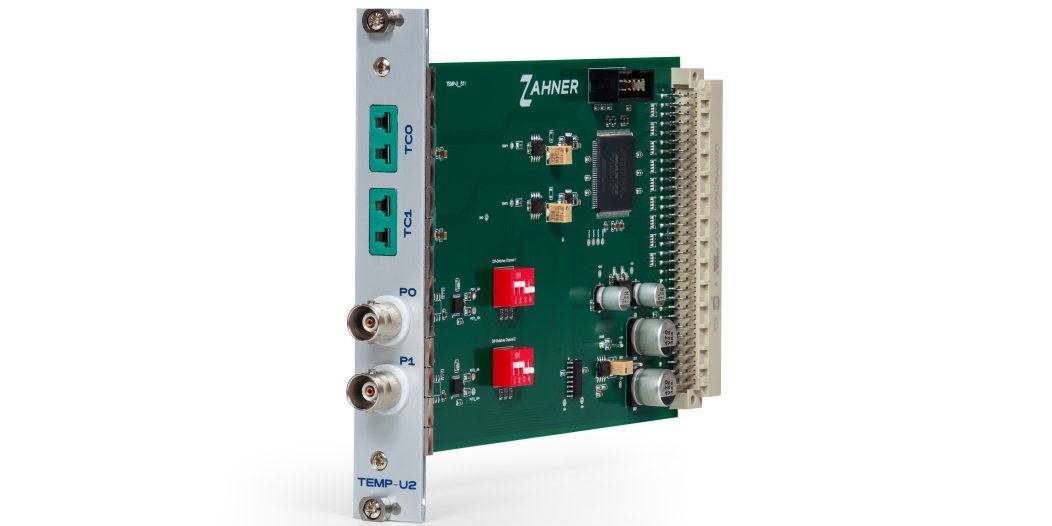

TEMP-U2
Zahner TEMP-U2 enables the temperature measurements by direct connection of two thermocouples. Two additional voltage input channels are available and provide the opportunity to record additional variables during the electrochemical measurement. For example, the voltage channels can be configured with a pH electrode or a pressure chamber to record the pH value or chamber pressure during the measurement.
Unless otherwise requested, the TEMP-U is delivered pre-configured for two NiCrNi (type K) thermocouples and two voltage inputs in the range of ±8 V.
Unless otherwise requested, the TEMP-U is delivered pre-configured for two NiCrNi (type K) thermocouples and two voltage inputs in the range of ±8 V.
- 2 thermocouple inputs
- 2 analog voltage inputs
Specifications
Socket
BNC
Input resistance
1012 Ω / 105 Ω , switchable
Input range
±250 mV, ±500 mV, ±1 V, ±2 V, ±4 V, ±8 V (standard), ±16 V, switchable
Offset voltage
±0.5 mV, ±0.1 % of full scale
Input current
±50 pA max
Bandwidth
300 Hz
Max. isolation voltage
±12 V
Socket
miniature, IEC, type K
Isolation impedance
non-isolated (insulated thermocouple required)
Themperature Range
depending on the thermocouple type
standard type K (NiCrNi): -200 °C to +1372 °C
standard type K (NiCrNi): -200 °C to +1372 °C
Cold junction compensation
automatic (internally), range -20 °C to +85 °C, tolerance ±0.7 °C
Socket
BNC
Input resistance
1012 Ω / 105 Ω , switchable
Input range
±250 mV, ±500 mV, ±1 V, ±2 V, ±4 V, ±8 V (standard), ±16 V, switchable
Offset voltage
±0.5 mV, ±0.1 % of full scale
Input current
±50 pA max
Bandwidth
300 Hz
Max. isolation voltage
±12 V
Socket
miniature, IEC, type K
Isolation impedance
non-isolated (insulated thermocouple required)
Themperature Range
depending on the thermocouple type
standard type K (NiCrNi): -200 °C to +1372 °C
standard type K (NiCrNi): -200 °C to +1372 °C
Cold junction compensation
automatic (internally), range -20 °C to +85 °C, tolerance ±0.7 °C
Downloads
Download the latest manual about the TEMP-U2 addon card.
Access the latest manual about the TEMP-U2 addon card.
