Battery module

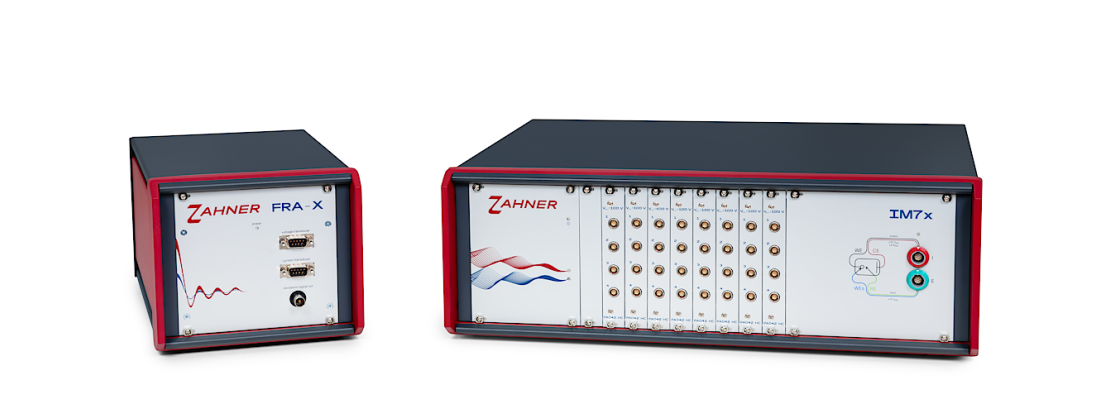

The FRA-X acts as an interface between the IM7 series potentiostat and an external power supply, enabling EIS measurements outside the power specifications of Zahner's products. Such a system can be used to carry out reliable EIS on battery modules.
The FRA-X supports voltages up to 1400 V and currents up to 2000 A. The optional PAD42 cards enable synchronous measurements on individual cells within a stack, half-cell characterization, and cross-sectional analysis, allowing more detailed evaluation of battery systems.
The system can be controlled through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.
The FRA-X supports voltages up to 1400 V and currents up to 2000 A. The optional PAD42 cards enable synchronous measurements on individual cells within a stack, half-cell characterization, and cross-sectional analysis, allowing more detailed evaluation of battery systems.
The system can be controlled through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.
Technical specifications
Current ranges:
±2000 A
Voltage ranges:
±1400 V
EIS frequency range:
10 µHz - 100 kHz
In-depth analysis of battery system
The PAD42 cards in the IM7 or IM7x can be used together with FRA-X to perform synchronous measurements for in-depth analysis of the battery systems.
Stack-level analysis

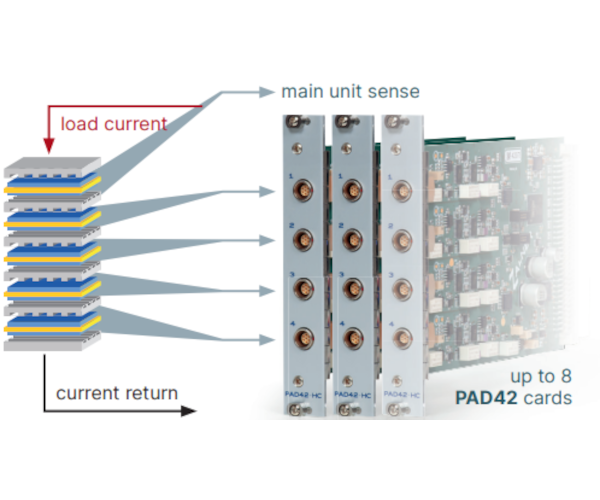

The PAD42 cards allow synchronous EIS or DC measurements on each cell in a stack. With eight PAD42 cards, up to 33 synchronous measurements can be carried out on individual cells in a stack.
Learn more
Half-cell analysis

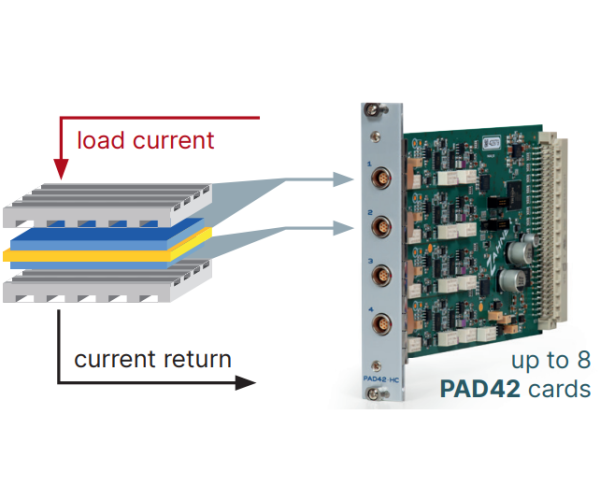

The PAD42 cards in the IM7 or IM7x can be used to perform synchronous measurements at each electrode in a reference electrode setup.
Learn more
