Area measurement cell

AMZ60

AMZ60

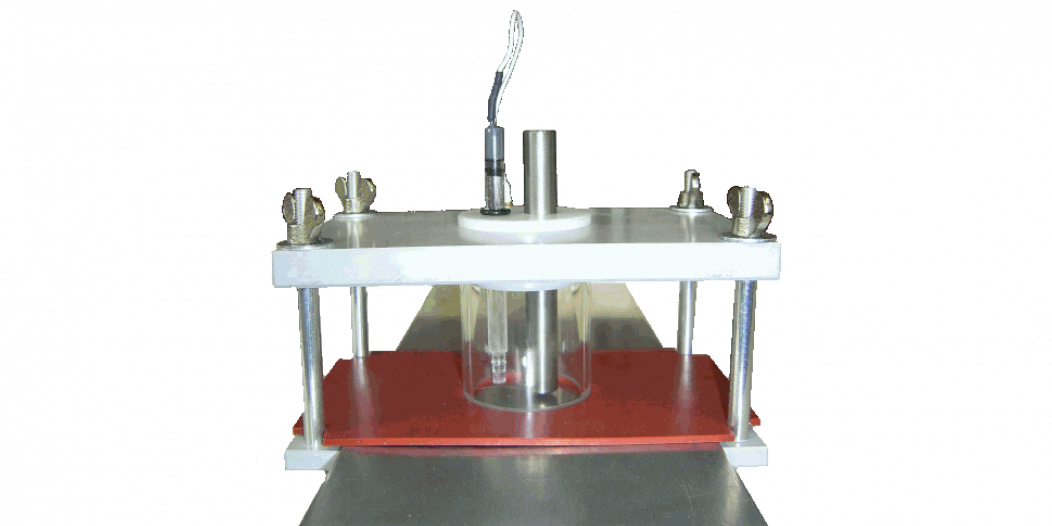

The area measuring cell AMZ60 is a triple electrode cell for electrochemical testing of coated samples. The AMZ60 aids in achieving high reproducibility for the measurements on coated or laminated samples. The coated sample acts as the working electrode. A Ag/AgCl reference and a steel rod counter electrode are included in the setup.



Specifications

Cell container
Plexiglass tube
Measuring area
9 cm2
Minimum width of sample
5 cm
Maximum width of sample
10 cm
Counter electrode
Stainless steel rod
Reference electrode
Ag/AgCl
Working electrode
Specimen
Cell container
Plexiglass tube
Measuring area
9 cm2
Minimum width of sample
5 cm
Maximum width of sample
10 cm
Counter electrode
Stainless steel rod
Reference electrode
Ag/AgCl
Working electrode
Specimen

Downloads

Download the Zahner AMZ60 manual.
