OUR PRODUCTS

Precision, flexibility, reliability, and performance

ZAHNER instruments are highly esteemed for their high flexibility, reliability, and performance. Furthermore, with its experienced specialists, ZAHNER is known to provide an exemplary service before and after sale, an individual, application-specific consultation, and - above all - practical support for setting up an experiment.

Potentiostats

Zahner potentiostats are designed to provided highest level of performance in electrochemical experiments. For many decades, they have been proven to be precise and versatile devices for any kind of electrochemical applications. These flexible potentiostats can be customized to the individual needs of the users for use in any field of electrochemistry or photoelectrochemistry.

Modular Potentiostats:

ZENNIUM X

ZENNIUM X

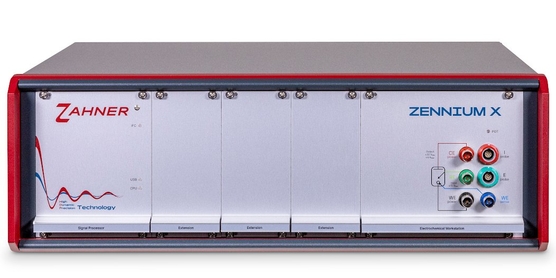

The ZENNIUM X is a modular high end potentiostat / galvanostat including a frequency response analyzer (FRA) unit with a frequency range up to 12 MHz. It can be operated for currents up to ±4 A and a compliance voltage of up to ±32 V. With an input impedance of more than 10 TΩ || 5 pF, the potentiostat is suitable for a wide range of electrochemical tasks.
ZENNIUM PRO - front panel

ZENNIUM PRO

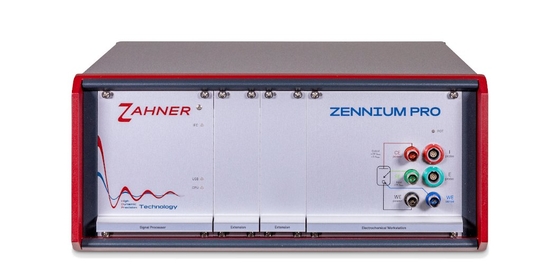

The ZENNIUM PRO is a modular potentiostat / galvanostat including a frequency response analyzer (FRA) with a frequency range up to 8 MHz. It can be operated for currents up to ±3 A and a compliance voltage of up to ±28 V. With an input impedance of more than 10 TΩ || 5 pF, the potentiostat is suitable for a wide range of electrochemical tasks.
ZENNIUM XC - front panel

ZENNIUM XC

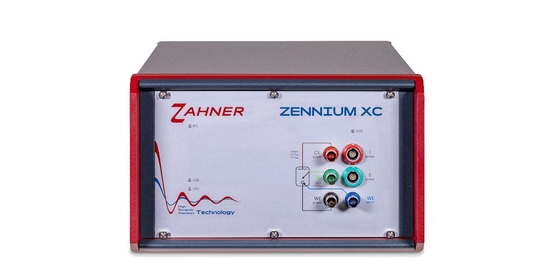

The ZENNIUM XC is a compact potentiostat / galvanostat including a frequency response analyzer (FRA) with a frequency range up to 5 MHz. It can be operated for currents up to ±2 A and a controlled voltage of ±14 V. With an input impedance of 10 TΩ || 5 pF, the potentiostat is suitable for a wide range of electrochemical tasks.

Photoelectrochemistry & Photovoltaic

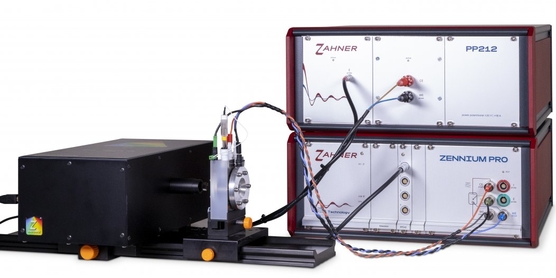

The CIMPS system is an advanced system for photoelectrochemical/photovoltaics measurements. An additional potentiostat actively controls the light source which allows dynamic measurements like IMPS, IMVS besides standard electrochemical and photoelectrochemical measurements.

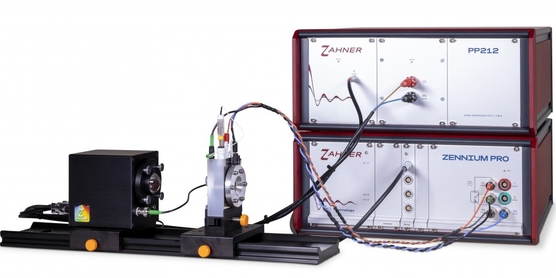

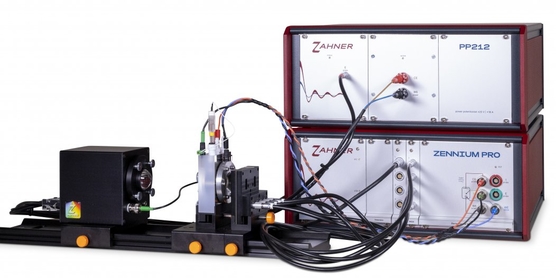

CIMPS system with extensions and accessories

CIMPS

CIMPS

The CIMPS system is a powerful tool for the investigation of photoelectrochemical / photovoltaic systems. The system can carry out standard electrochemical techniques and special photoelectrochemical techniques like IMPS/IMVS, CLV and etc. A robust feedback loop ensures constant and reproducible intensity of light illumination during the photoelectrochemical measurements.
CIMPS IPCE

CIMPS-QE/IPCE

CIMPS-QE/IPCE is an extended CIMPS system with the capability to measure quantum efficiency (QE) or incident photon to current efficiency (IPCE).

During IPCE measurements, a special indicator is also provided which indicates if the measurement parameters are optimal for the IPCE measurement or not.
CIMPS extensions

CIMPS Options

The CIMPS system can be extended for dedicated experiments. Extensions are available for spectral resolved transmission / absorbance measurement (ABS), light emission measurement (EMIT), fast light intensity transient measurements (FIT), and multispectral dynamic transmittance (MDTR/OIS) measurements.

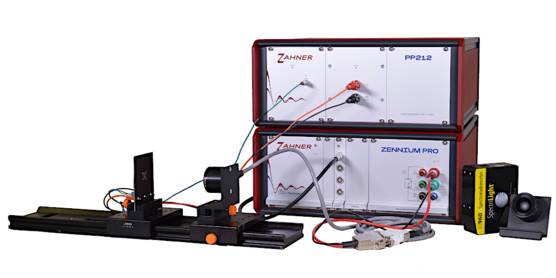

CIMPS-EMIT

CIMPS-EMIT allows the characterization of electroluminescence processes. It can be used for integral or spectral resolved light emission measurements.

For spectral resolved measurements a UV-VIS-NIR-Spektrometer is used, for integral intensity measurements a photodiode with NIST-traceable calibration.

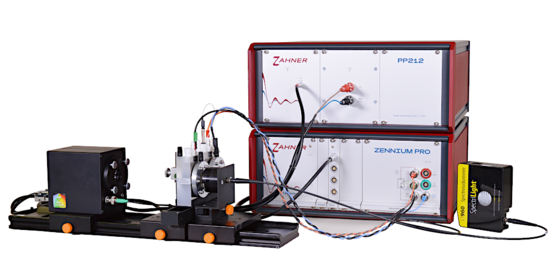

CIMPS-ABS

CIMPS-ABS allows spectral resolved transmittance / absorbance measurements to characterize electro-chromic processes.

A reference cell, identical to the test cell but without a test object, is used in parallel to the test cell to eliminate the light losses due to front window reflection and absorption in the electrolyte etc. This allows an accurate measurement of the absorption spectrum.

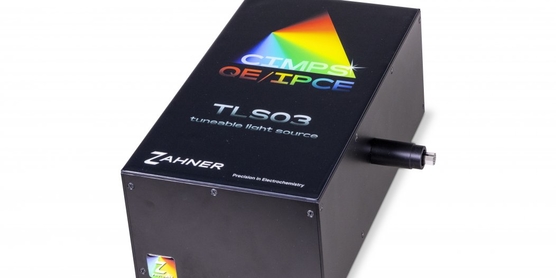

Tuneable light source

CIMPS-PCS

CIMPS pcs allows "quantum efficiency" or "incident photon to current efficiency (IPCE)" measurements for the characterization of photoelectrodes or solar cells. Additional measurement indicators show if the measurements settings are suitable for measuring the true IPCE for different kinds of solar cells (DSSC, organic cells, III-V etc).
CIMPS-FIT

CIMPS-FIT

CIMPS fit allows fast light intensity transient measurements to investigate the fast kinetics in organic, dye-sensitized, monolithic solar cells and photoelectrodes.

With CIMPS fit, charge migration and diffusion time constants can be measured with a resolution of 50 ns.
CIMPS-MDTR/OIS

CIMPS-MDTR/OIS

CIMPS mdtr/ois allows the characterization of electrochromic systems. Especially, dynamic properties of the electrochromic systems like color or opacity switching time with the current or voltage modulation. Similar to EIS, such dynamic measurements can provide insight into charge transfer and relaxation processes.
PECC-1

PEC-Cells

Photoelectrochemical cells (PECC) are designed for measurements of photoelectrodes. PEC cells are available with a window on electrolyte side (PECC-1) or with windows on electrolyte and working electrode side (PECC-2).

The PECC-2 allows front or back side illumination.
Light sources

Light Sources

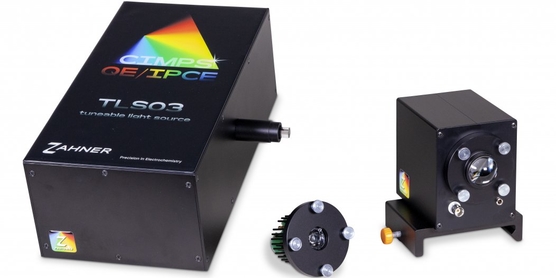

Zahner offers a wide variety of light sources to choose from.

1) monochromatic LEDs (different LEDs available over a wide wavelength range).
2) tuneable light source (LED based light source with wavelength range 295 - 1020 nm)
Light exclusion box

Light Exclusion Box

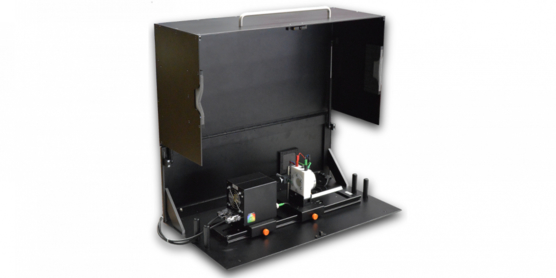

The light exclusion box (LEB) is recommended for every photoelectrochemical / photovoltaic experiment. The LEB also works as a Faraday cage and eliminates the typical artefacts induced during low current measurements.

External Potentiostats

Extend the current/voltage range of the Zennium series potentiostat. The external potentiostats are controlled via an EPC42 interface card and can perform all electrochemical measurements possible with the Zennium series potentiostat. Multiple external potentiostats can be simultaneously connected with a Zennium series potentiostat and controlled sequentially.

Four quadrant external potentiostats

PP212 front panel

PP212

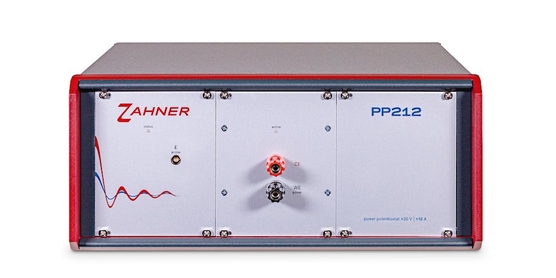

The external power potentiostat PP212 is used for medium power applications (up to 200 W) or in CIMPS system for controlling the light source. The PP212 is designed for currents up to ±10 A and voltage up to ±20 V.

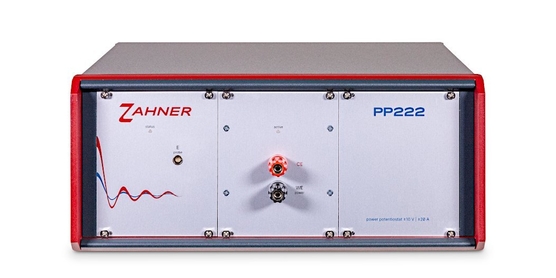

PP222

The external power potentiostat PP222 is used for medium power applications (up to 200 W). The PP222 is designed for currents up to ±20 A and voltage up to ±10 V.

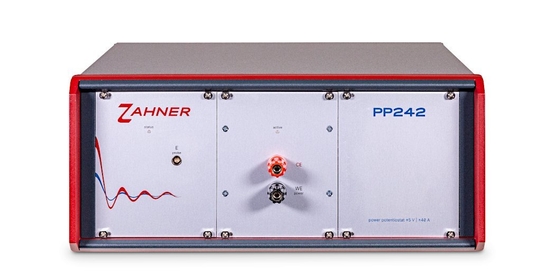

PP242 front panel

PP242

The external power potentiostat PP242 is used for medium power applications (up to 200 W). The PP242 is designed for high current measurement up to ±40 A and voltage up to ±5 V.
XPOT2 frontpanel

XPOT2

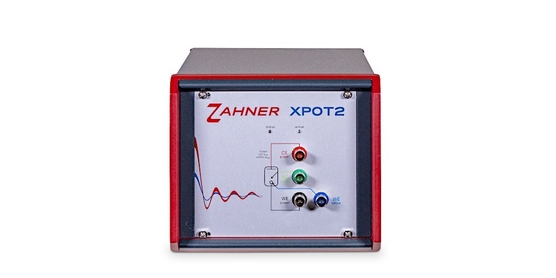

The compact external potentiostat XPOT2 adds an additional high precision channel to the ZENNIUM potentiostat for bi-potentiostat functionality e.g., for rotating ring disk electrode (RRDE) measurements. The XPOT2 provides currents up to ±500 mA and compliance voltage of up to ±25 V.

Electronic Loads

Zahner's electronic loads are specially designed to perform reliable and clean impedance spectroscopy at high currents. With an external power supply, the setup can be extended to a two-quadrant setup for the field of electrolysis.

Single quadrant electronic loads

EL300

EL300

The 300 W dynamic electronic load EL300 is used for currents up to 100 A and voltages up to 12 V. The EL300 works as an extension to ZENNIUM series potentiostats (ZENNIUM X and ZENNIUM PRO). The EL300 serves as compact highly dynamic load.

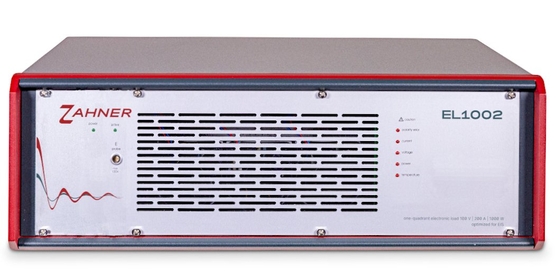

EL1002 frontside

EL1002

The dynamic electronic load EL1002 is optimized for EIS measurements on high power objects. It extends the power range of the ZENNIUM series potentiostats. Objects of up to 100 V can be characterized by EIS up to 100 kHz . In combination with third party devices the current range can be extended up to 680 A .

Probes

Zahner offers special probes, which are used for dedicated experiments and aid in getting low-artefact measurements for different extreme systems, hence if the system under investigation shows very high impedance, very low impedances or very low capacitance. Special probes are also available to extend the operation range of the ZENNIUM series potentiostats like CVB120, FRA-Probe or Noise Probe.

Zahner's probes for special applications

HiZ-Probe

HiZ-Probe

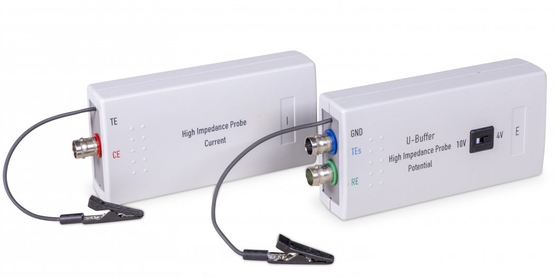

The HiZ-Probe is used to optimize measurements on high impedance test objects (Impedance > 1 GΩ) or extremely low currents. The HiZ-Probe measures currents directly next to the sample and amplifies the signal to overcome electrostatic noise. Typical applications are investigations on passive layers, oxides, nitrides, dielectric films, ceramic substrates, low conductive electrolytes, lacquers, coatings, and microelectrodes etc. inside a faraday cage.
HiZ-Cable

Shielded Cable Set

The Shielded Cable Set (length = 1 m) is a specially designed, co-axial, actively shielded, cable set. This cable set is designed for characterizing high impedance and low current samples. The Shielded Cable Set provides protection from the surrounding electrical disturbances and mitigates artefacts.
LoZ cable

LoZ-Cable

The LoZ-Cable (length = 2 m) is specially designed for low impedance measurements like for batteries and fuel cells. The symmetric geometry of the cables significantly reduces the influence of mutual induction.

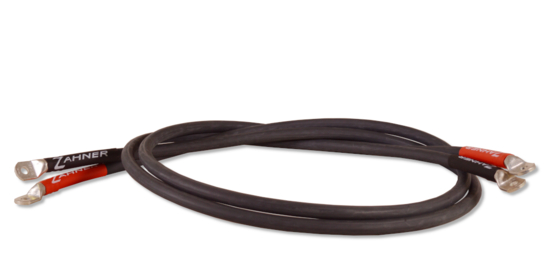

High Current Cable

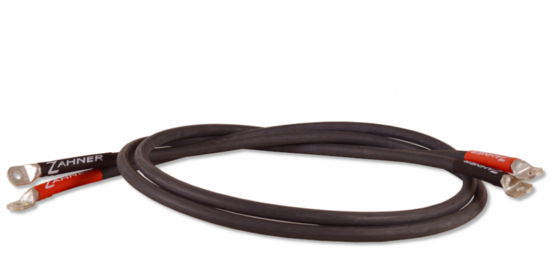

The High Current Cable (length = 2 m) is a 95 mm2 thick cable set. The High Current Cable is used in measurements with currents up to 200 A.

Longer cables are available upon request.

FRA-Probe

FRA-Probe

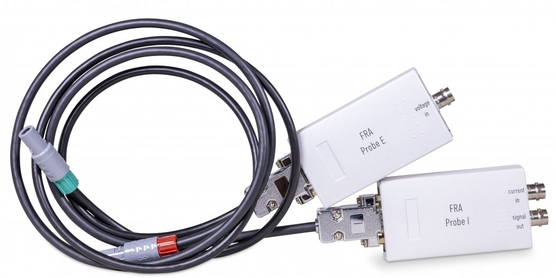

The FRA-Probe enables the ZENNIUM series potentiostats to interface and modulate third-party devices. It adds an additional dimension for EIS measurements on e.g., high power devices like automotive size single fuel cell measurements or large fuel cells stacks.
Noise Probe

Noise Probe

The Noise Probe is commonly used for all electrochemical noise techniques and especially for noise based corrosion research. The Noise Probe uses Zahner's patented CorrELNoise® (correlated electrochemical noise) measurement technology for (quasi-)parallel measurement of voltage and current noise. The chopper principle in CorrElNoise® also eliminates the effect of drift or any offset and suppress line frequency interface.

Addon Cards

The capabilities of ZENNIUM X and ZENNIUM PRO potentiostats can be extended via numerous addon cards. These extension cards provide additional measurement or control signals (like temperature, voltage or pH etc.) which can be recorded during measurement or can be used as a trigger to start a measurement. Other extension cards interfaces external potentiostats and loads, adds sequential multichannel or parallel EIS channels.

Addon cards for extended capabilities

EPC42 card

EPC42

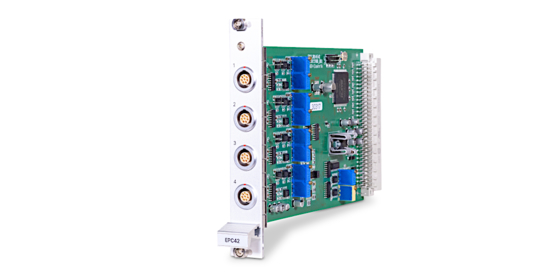

The EPC42 is the link between the ZENNIUM potentiostat and the power and auxiliary potentiostats or electronic loads. One EPC42 card can address up to four PP/EL/XPOT devices sequentially. Up to four EPC42 cards can be installed in a ZENNIUM X and ZENNIUM PRO potentiostat. In total, a ZENNIUM series potentiostat can be simultaneously connected with up to 16 external PPs/ELs, which can be controlled sequentially.
PAD4 card

PAD4

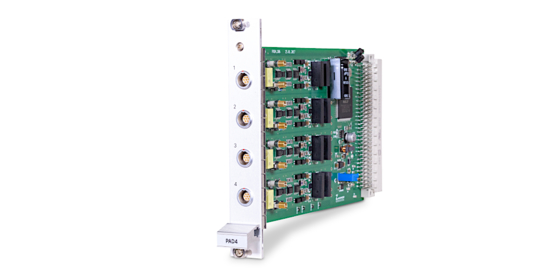

A PAD4 card provides four additional voltage or current sense channels. The PAD4 card is primarily used for battery and fuel cell applications where impedance spectra or cyclic voltammograms for each cell can be recorded synchronous in a single measurement. The ZENNIUM X can be upgraded with up to four PAD4 cards which enables it to measure up to 17 impedance spectra in a single measurement.

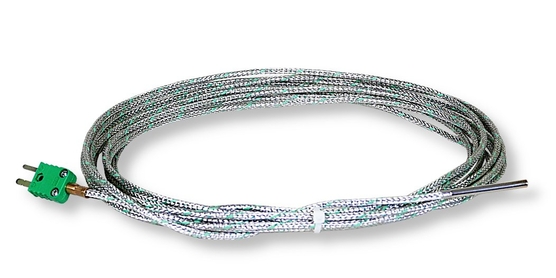

TEMP-U2

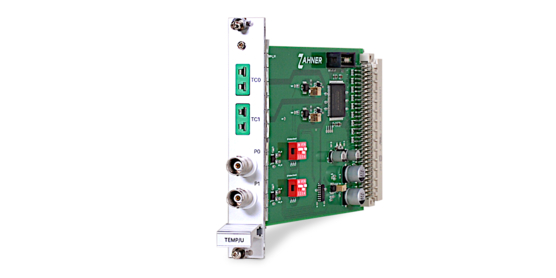

Zahner TEMP-U2 enables the temperature measurements by direct connection of two thermocouples. Two additional voltage input channels are available and provide the opportunity to record additional variables during the electrochemical measurement. For example, the voltage channels can be configured with a pH electrode or a pressure chamber to record the pH value or chamber pressure during the measurement.

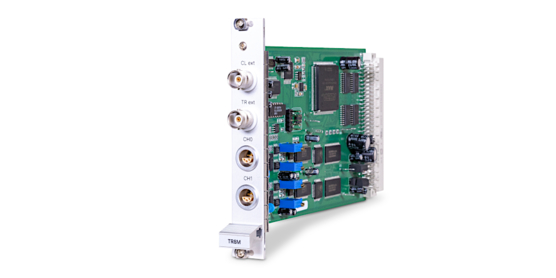

TR8M card

TR8M

The TR8M addon card allows fast measurements of pulses or transients with a high sampling rate of up to 40 MHz. Together with a Pulse Probe and an external potentiostat or electronic load, high current interrupt measurements may also be performed.

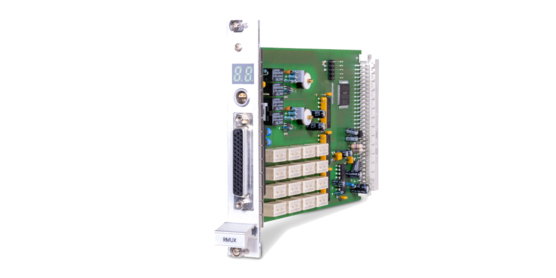

RMUX4 card

RMUX4

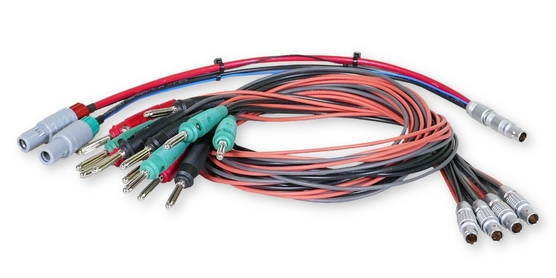

The RMUX4 card allows to simultaneously connect up to four electrochemical cells to the potentiostat. The RMUX4 card is designed for corrosion experiments and has high input impedance. The OCP at all channels can be measured simultaneously along with one active channel for e.g., EIS measurement.  Up to four RMUX4 cards can be installed in a ZENNIUM X or ZENNIUM PRO potentiostat which allows simultaneous connection to up to 16 electrochemical cells.
RMUX16 card

RMUX16

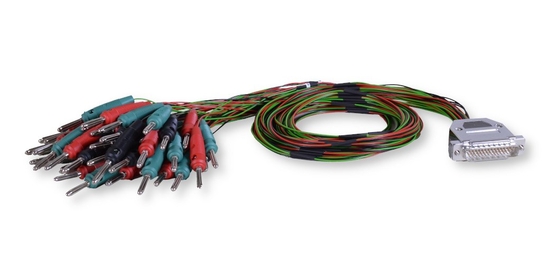

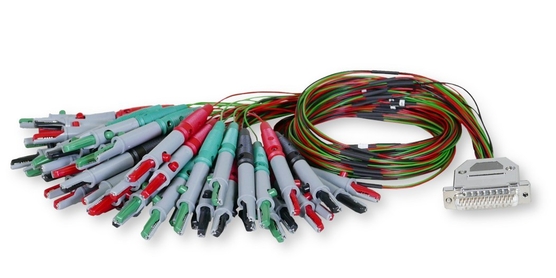

The RMUX16 card allows to simultaneously connect up to 16 individual cells to the potentiostat. Up to four RMUX16 cards can be installed in a ZENNIUM series potentiostat which allows simultaneous connection to up to 64 electrochemical cells. The measurements on all connected cells are carried out sequentially. The RMUX16 card is an ideal addition for routine and screening measurements on small samples.
MIO card

MIO

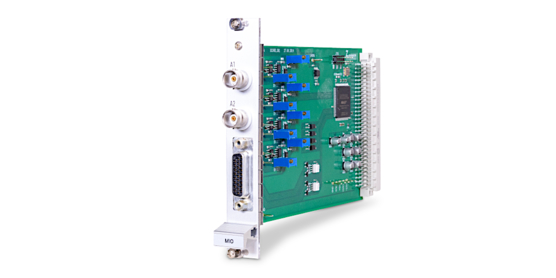

The MIO addon card provides four analog output channels with a voltage range of ±10 V. In addition the MIO card is also equipped with four isolated digital input and four isolated digital relay output channels. The MIO addon card is used to receive and send trigger signals between the ZENNIUM potentiostats and a third party device.

Multiplexer

Our multiplexer are useful addition for routine or screening experiments in automated measurement setups. Sequential measurements can be carried out on the connected test objects in predefined routines or in customized protocols.

Multiplexer to simultaneously connect multiple cells

RMUX4 card

RMUX4

The RMUX4 card allows to simultaneously connect up to four electrochemical cells to the potentiostat. The RMUX4 card is designed for corrosion experiments and has high input impedance. The OCP at all channels can be measured simultaneously along with one active channel for e.g., EIS measurement.  Up to four RMUX4 cards can be installed in a ZENNIUM X or ZENNIUM PRO potentiostat which allows simultaneous connection to up to 16 electrochemical cells.
RMUX16 card

RMUX16

The RMUX16 card allows to simultaneously connect up to 16 individual cells to the potentiostat. Up to four RMUX16 cards can be installed in a ZENNIUM series potentiostat which allows simultaneous connection to up to 64 electrochemical cells. The measurements on all connected cells are carried out sequentially. The RMUX16 card is an ideal addition for routine and screening measurements on small samples.

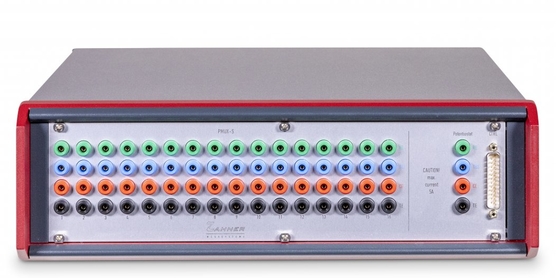

PMUX-S

PMUX-S

The PMUX-S power multiplexer is used to simultaneously contact the ZENNIUM series potentiostat with up to 16 individual cells. The measurements are carried out sequentially. For medium power applications, our power potentiostats can also be connected. The PMUX-S can be used for cell currents up to ±5 A.
PMUX-P

PMUX-P

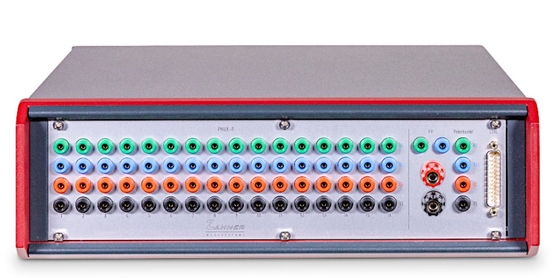

The PMUX-P is configured for sequentially measuring through up to 16 segments of a segmented electrode, e.g., of a fuel cell. For this application, a PP series potentiostat or an EL series electronic load is used for loading all segments except the one which is measured. The measurement is done by the internal ZENNIUM potentiostat. The software carries out sequential measurements through all segments of the fuel cell.
BC-MUX front panel

BC-MUX

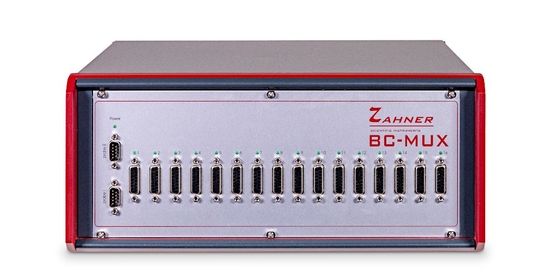

The battery cycling multiplexer BC-MUX is the link between the high power performances of your battery cycler and the EIS precision of our ZENNIUM potentiostats. The BC-MUX can address up to 16 channels to sequentially perform EIS measurements on the connected samples.


Extension Kits

We offer dedicated extension kits as measurement tools developed by Zahner. High current interrupt (HCI) extension kit is used in high frequency investigation of fuel cells and the coating and laminate tester (COLT) extension kit is used in investigating the corrosion behavior of coatings and laminates.

Extensions Kits for special experiments

High current interrupt - Pulse Probe

HCI

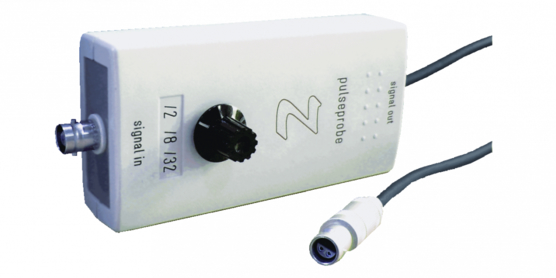

The HCI (High Current Interrupt) setup is an extension for the ZENNIUM potentiostat. It extends the high-frequency EIS range for the determination of the series resistance in fuel cell by a factor of three to ten. It consists of a TR8M transient recorder, a calibrated Pulse Probe and an external device from the PP series or EL series.

COLT

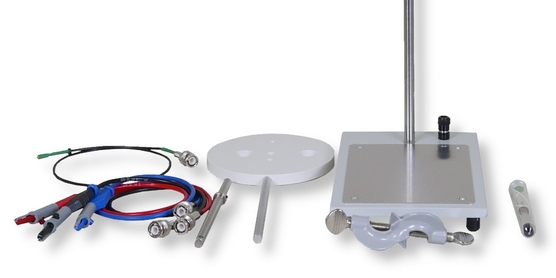

The COLT (Coating and Laminate Tester) measurement system has been designed to perform accelerated corrosion test to determine the stability of coatings and laminates. With the COLT setup, quality indicators of the test objects can be obtained via a single click method.

Cell Kits

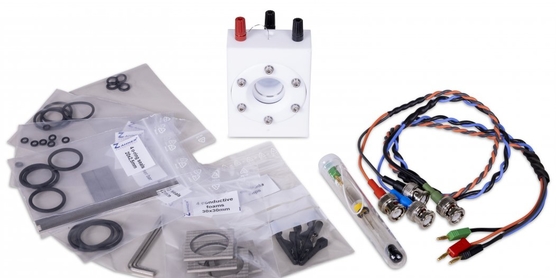

Besides the following cells, we offer a broad range of electrochemical cell kits for application in electrochemistry and photoelectrochemistry. Please contact our sales team to find out if we can offer you a cell suitable to your needs.

Cells for electrochemical & photoelectrochemical applications

PECC-1

PEC-Cells

Photoelectrochemical cells (PECC) are designed for measurements of photoelectrodes. PEC cells are available with a window on electrolyte side (PECC-1) or with windows on electrolyte and working electrode side (PECC-2).

The PECC-2 allows front or back side illumination.

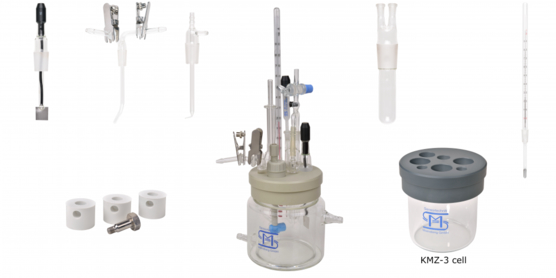

KMZ3 cell

KMZ3

The corrosion measuring cell KMZ3 is a triple electrode cell for standard electrochemical measurements. The KMZ3 cell has different cell tops with standard taper joints (NS) for the insertion of the working and the counter electrodes, as well as the intermediate vessel with reference electrode and liquid junction tube including a "Haber Luggin capilary".
KMZ5 cell

KMZ5

The corrosion measuring cell KMZ5 is a triple electrode water-jacketed cell for standard electrochemical measurements with a cell container suitable for connection to constant temperature circulators. The KMZ5 cell has different cell tops with standard taper joints (NS) for the insertion of the working and the counter electrodes, as well as the intermediate vessel with reference electrode and liquid junction tube including a "Haber Luggin capilary".
AMZ60

AMZ60

The area measuring cell AMZ60 is a triple electrode cell for electrochemical testing of coated samples. The AMZ60 aids in achieving high reproducibility for the measurements on coated or laminated samples.

Software

Zahner's software for controlling the Zennium potentiostats and their extensions to carry out electrochemical and photoelectrochemical measurements. The Zahner Analysis software allow characterization of measured data.

All our software have been developed in-house and have been customized to be used by the electrochemists. In-house development provides us with the needed flexibility and enables us to consider customer requirements for future development in the software.

Zahner's software for measurements and analysis

Zahner Analysis

Zahner Analysis

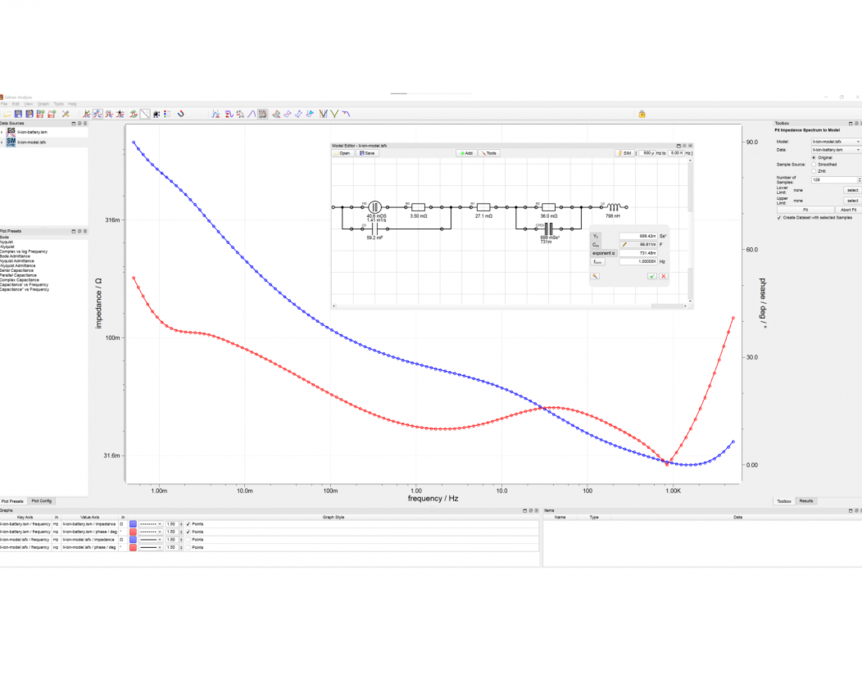

The Zahner Analysis software allows for fast and convenient evaluation of the measured electrochemical data. An advanced fitting algorithm and many other features for the characterization of EIS make this software a valuable tool for the interpretation of impedance data.

Faraday Cage

Electrostatic noise from the laboratory environment disturbs measurement signals and decreases data quality drastically for small current signals. Our Faraday Cage enables effective shielding for measurement on high impedance or low current samples.

Faraday Cage for electrochemical and photoelectrochemical applications

Light exclusion box

Light Exclusion Box

The light exclusion box (LEB) is recommended for every photoelectrochemical / photovoltaic experiment. The LEB also works as a Faraday cage and eliminates the typical artefacts induced during low current measurements.

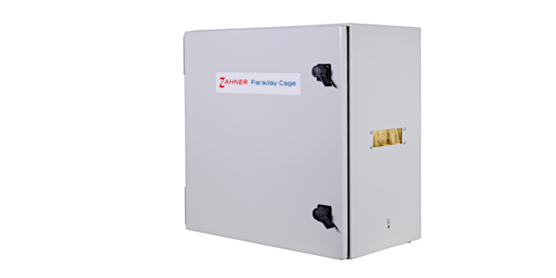

Faraday Cage

The Faraday Cage is a grounded box to shield the high ohmic test objects from electric distortion during the electrochemical measurements.

Entry level potentiostat

Compact single and multichannels entry level potentiostats from the American company "Admiral Instruments".

Compact single or multichannel potentiostats

Squidstat Solo

Squidstat Solo

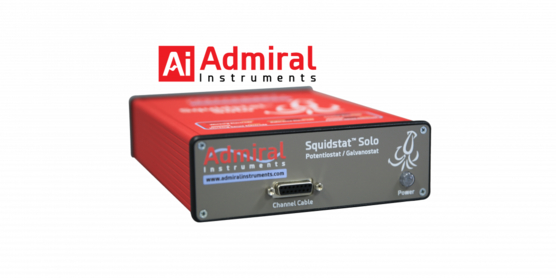

Squidstat Solo is a compact, light weight and portable entry level potentiostat for the low current (up to ±100 mA) DC experiments.
Admiral Squidstat Prime

Squidstat Prime

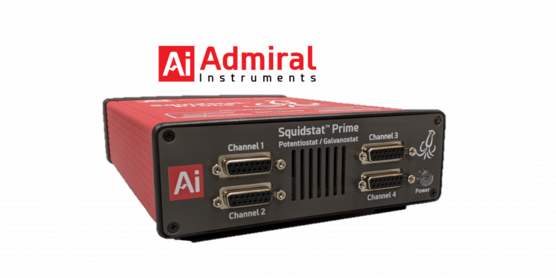

Squidstat Prime is a compact, light weight and portable entry level potentiostat with multi-channel capabilities for the DC experiments. The Squidstat Prime consists of 4 channels with a maximum current of ±250 mA per channel.
Admiral Squidstat Plus

Squidstat Plus

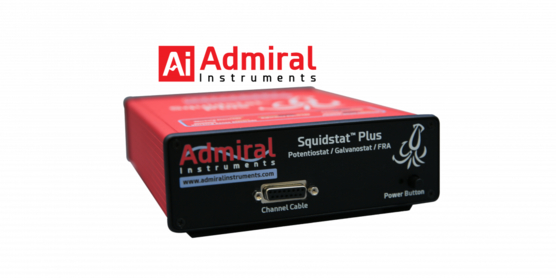

Squidstat Plus is a compact, light weight and portable entry level potentiostat for the DC and AC measurements.

Request a quote

Is this the right product for you? Contact our sales team to get further information about our products and their suitability to your individual applications.

Contact Sales
