Photoelectrochemistry & Photovoltaic

CIMPS

Zahner's CIMPS is an LED-based system which is designed for photoelectrochemical or photovoltaic applications. Using an active light feedback loop the CIMPS system ensures a controlled light intensity during the measurements. A wide variety of monochromatic LEDs from UV to near IR is available for the CIMPS-system. Extensions for light emission, absorption, transmission or light transient measurements increase versatility of the CIMPS-system.

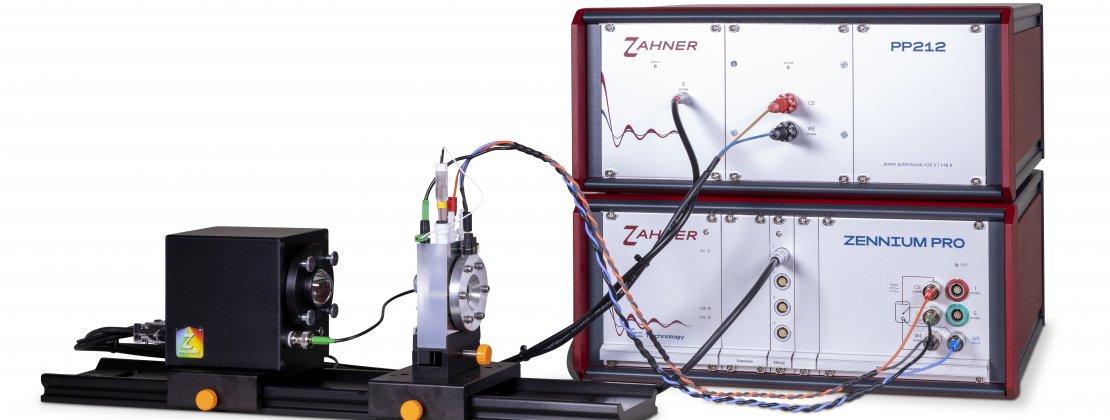

LEDs based CIMPS system

Methods

  • Chopped light voltammetry (CLV)
  • Controlled intensity modulated photocurrent spectroscopy (controlled IMPS)
  • Controlled intensity modulated photovoltage spectroscopy (controlled IMVS)
  • Maximum power and fill factor measurements
  • Light transient measurements
  • Time domain measurements
  • Standard electrochemical measurements

Technical specifications

ZENNIUM X:
± 5 V / ± 15 V

up to ± 4 A over 12 current ranges

32 bit DC & 24 bit AC resolution
LED potentiostat:
PP212
Accessories:
Light source

Light source support

Feedback sensor with cell holder

Optical bench
ZENNIUM PRO:
± 5 V / ± 15 V

up to ± 3 A over 12 current ranges

32 bit DC & 24 bit AC resolution
LED potentiostat:
PP212
Accessories:
Light source

Light source support

Feedback sensor with cell holder

Optical bench

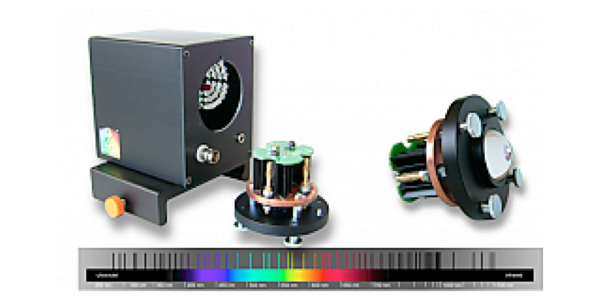

Light sources

The CIMPS system uses monochromatic LEDs as light sources. The light sources are "plug and play", they are automatically detected by the software. Each LED delivered with the CIMPS system is individually calibrated to provide accurate illumination during the experiments.

Monochromatic LEDs

Extensions

The CIMPS system can be extended for different dedicated experiments. Extension options are listed below.

CIMPS-ABS

The CIMPS-ABS system allows spectral resolved transmission/absorption measurements and is designed for characterizing the electrochromic processes.

Learn more

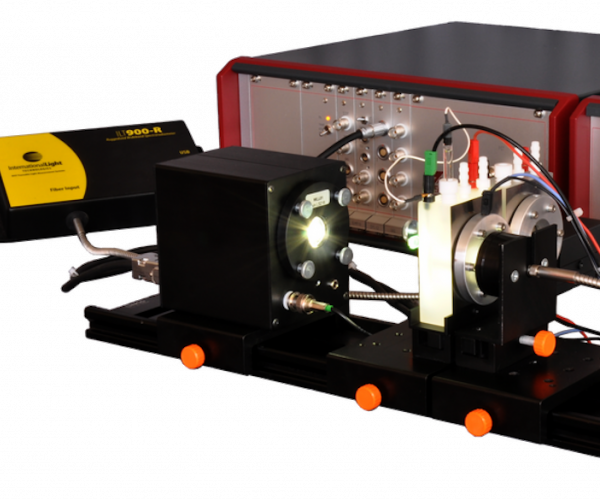

CIMPS ABS: Absorption measurement

CIMPS-EMIT

TheCIMPS-EMIT system allows spectral resolved light emission measurements as used in investigation of electrochromic samples like OLEDs.

Learn more

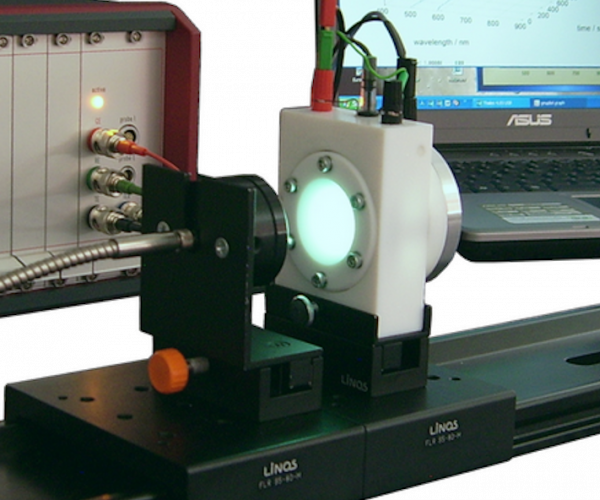

CIMPS EMIT: Light emission measurement

CIMPS-FIT

TheCIMPS-FIT system allows fast light transient measurements (resolution down to 50 ns) and is designed for studying the fast kinetics in monolithic solar cells or photoelectrodes as well as organic LEDs and photosensors etc.

Learn more

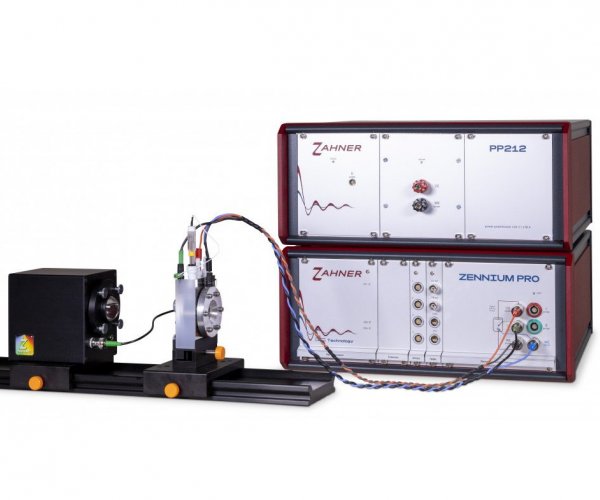

CIMPS FIT: Fast intensity transient measurements

CIMPS-MDTR/OIS

The CIMPS-MDTR/OIS system is used to characterize the dynamic properties of electrochromic systems like opacity or color switching time with a current or voltage excitation.

Learn more

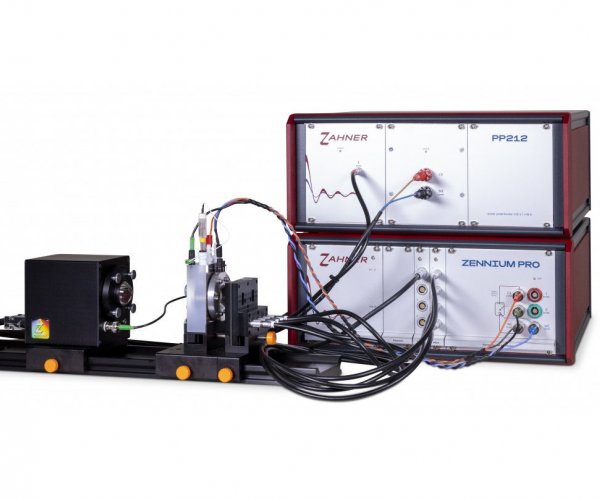

CIMPS-MDTR/OIS: Optical impedance spectroscopy

Accessories

Photoelectrochemical measurements are carried out in a controlled light environment. For this purpose, Zahner has designed a light exclusion box (LEB). This LEB can accommodate the complete optical bench with light source and sample. The LEB also serves as a Faraday cage and diminishes artefacts at low current measurements.

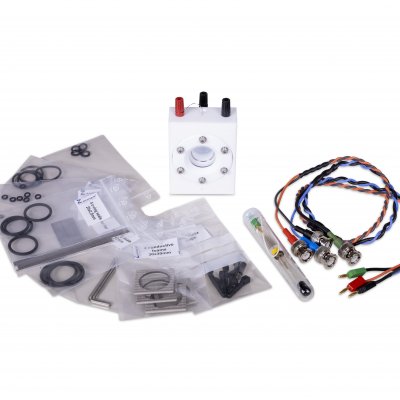

PECC: Photoelectrochemical cell
