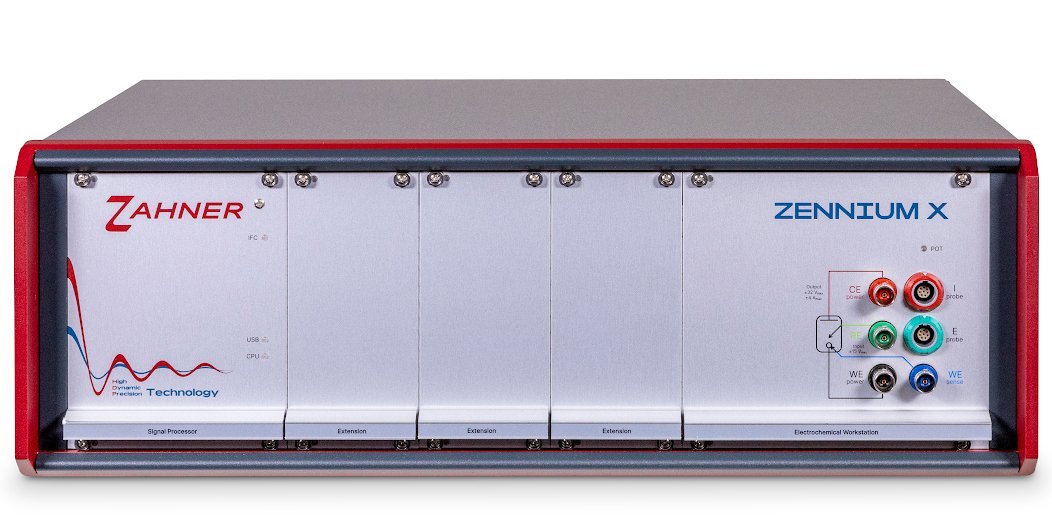

ZENNIUM X

ZENNIUM X

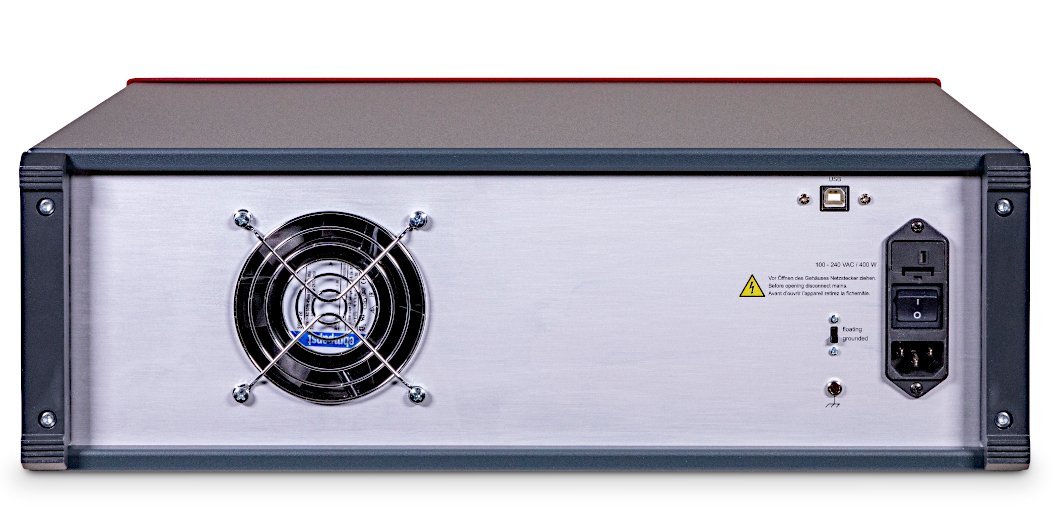

ZENNIUM X - back panel

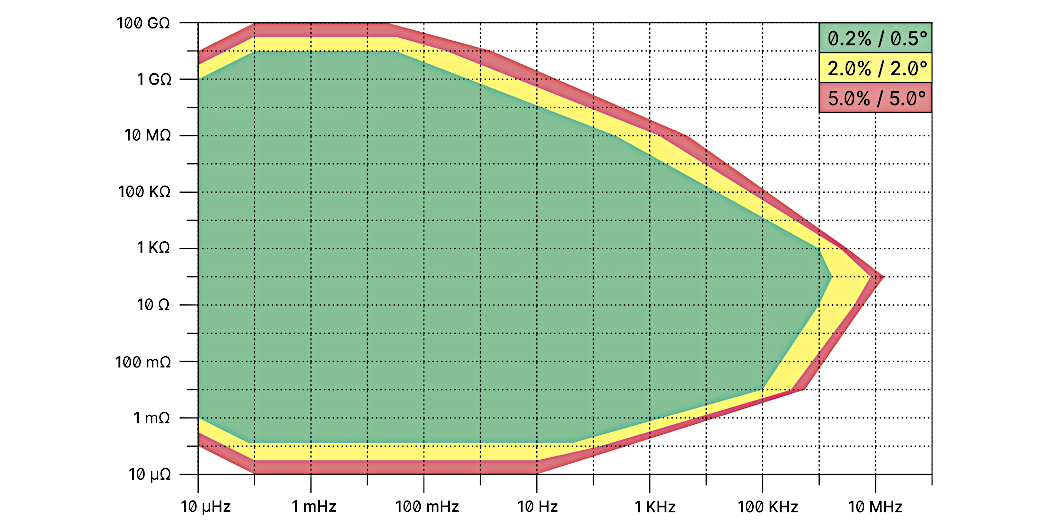

Accuracy Contour Plot: ZENNIUM X
The ZENNIUM X is a modular potentiostat / galvanostat including a frequency response analyzer (FRA). The ZENNIUM X potentiostat offers 32 bit DC resolution and 24 bit AC resolution across 12 different current ranges, which enables it to carry out outstandingly precise and accurate measurements. Nine extension slots allow versatile customization of the potentiostat for use in different fields of electrochemistry.

A list of main electrochemical measurements possible with the ZENNIUM X potentiostat is provided here.
  • DC voltage ranges: ±5 V and ±15 V
  • Current up to ±4 A over 12 current ranges
  • EIS frequency range from 10 µHz to 12 MHz
  • AC amplitude of 0 - 6 V or 0 - 2 A for EIS
  • Up to 17 parallel channels for EIS (4 PAD4 cards)
  • Switchable floating / grounded mode
  • ADF technology for fast CV (up to 10 kV/s)
Overall bandwidth
DC - 15 MHz
ADC resolution
32 bit
Harmonic reject*
> 60 dB @ ½ full scale
Potentiostat modes
potentiostatic, galvanostatic, pseudo-galvanostatic, OCP, ZRA, FRA
Cell connection
2-, 3-, 4-terminal kelvin
Ground reference
grounded, floating
Extension slots
10
PC interface
USB 2.0
Dimensions (H x W x D)
160 x 470 x 376 mm3
Weight
13.2 kg
Accessories
cell cable set, USB cable, power cord, Testbox, Thales XT software suite, manual, 3 Zahner Analysis licenses
Power supply
100/115/230VAC, 50/60Hz
Ambient temperature
+10 °C to +30 °C
Ambient humidity
< 60% without derating
Storage temperature
-20 °C to +85 °C
*
*Preliminary
Maximum input voltage
±5.5 V

±16 V
5 V range

15 V range

Voltage resolution
2.5 nV

7.5 nV
5 V range

15 V range

Voltage accuracy*
±20 µV ± 2 ppm of reading

±50 µV ± 5 ppm of reading
5 V range

15 V range

Current resolution
±2 aA (32 bit)
Main / HiZ Probe

Current accuracy*
±0.05% of reading ± 0.01% of FS

±0.5% of reading ± 0.1% of FS

±0.5% of reading ± 0.1% of FS

± 0.5% of reading, ± 125 fA
1 µA ... 100 mA

100 mA ... 4 A

10 nA ... 1 µA

< |1 nA| HiZ Probe

Input impedance*
> 10 TΩ || ±5 pF (typical)

> 1000 TΩ || ±1 pF (typical)
Main

HiZ Probe

Input leakage current*
< |200 fA| typ.

< |2 pA| max.

   |10 fA| typ.




HiZ Probe

Impedance range*
1 mΩ to 10 GΩ / 1%

100 mΩ to 10 MΩ / 0.1%

100 mΩ to 100 GΩ / 2%

10 µΩ to 1 GΩ / 2%

1 mΩ to 10 MΩ / 0.2%
Main



HiZ

Gal

Common mode rejection*
> 86 dB @ 10 µHz to 100 kHz

> 66 dB @ 100 kHz to 12 MHz
Input channel phase-tracking accuracy*
±0.05 ° @ 10 µHz to 100 kHz

±0.125 ° @ 100 kHz to 12 MHz
Equivalent effective input noise*
1 µV rms / 100 fA rms @ 1 mHz to 10 Hz

10 µV rms / 15 fA rms @ 1 mHz to 10 Hz
Main



HiZ

*
*Preliminary
Controlled voltage
±5 V

±15 V
Resolution
2.5 nV

7.5 nV
5 V range

15 V range

Accuracy*
±50 µV ± 5 ppm of reading

±200 µV ± 5 ppm of reading
5 V range

15 V range

Integral Nonlinearity*
typ. 1 ppm, max. 2 ppm

typ. 3 ppm, max. 8 ppm
5 V range

15 V range

Compliance voltage
±16 V

±32 V
AC amplitude
0 to 2 V, 24 bit resolution

0 to 6 V, 24 bit resolution
5 V range

15 V range

Bandwidth
15 MHz @ 33 Ω load
IR compensation
auto AC impedance technique

range 0 to 10 MΩ

resolution 0.012%
Small signal rise time
150 ns to 200 µs in 5 steps
automatic selection

Slew rate*
15 MV/s
Phase shift*
10° @ 500 kHz
*
*Preliminary
Maximum current
±4 A
Current range
±1.9 nA to ±4 A in 12 steps
Main
Resolution
32 bit, ±0.2 ppb of FS
Accuracy*
±0.025% of reading ± 0.01% of FS

±0.1% of reading ± 0.05 % of FS
≥ 1 µA to 100 mA

< 1 µA or > 100 mA
*
*Preliminary
Frequency range
10 µHz to 12 MHz
Accuracy*
< 0.0025%
Resolution
0.0025%,

10000 steps/decade
*
*Preliminary
Overall bandwidth
DC - 15 MHz
ADC resolution
32 bit
Harmonic reject*
> 60 dB @ ½ full scale
Potentiostat modes
potentiostatic, galvanostatic, pseudo-galvanostatic, OCP, ZRA, FRA
Cell connection
2-, 3-, 4-terminal kelvin
Ground reference
grounded, floating
Extension slots
10
PC interface
USB 2.0
Dimensions (H x W x D)
160 x 470 x 376 mm3
Weight
13.2 kg
Accessories
cell cable set, USB cable, power cord, Testbox, Thales XT software suite, manual, 3 Zahner Analysis licenses
Power supply
100/115/230VAC, 50/60Hz
Ambient temperature
+10 °C to +30 °C
Ambient humidity
< 60% without derating
Storage temperature
-20 °C to +85 °C
*
*Preliminary
Maximum input voltage
±5.5 V

±16 V
5 V range

15 V range

Voltage resolution
2.5 nV

7.5 nV
5 V range

15 V range

Voltage accuracy*
±20 µV ± 2 ppm of reading

±50 µV ± 5 ppm of reading
5 V range

15 V range

Current resolution
±2 aA (32 bit)
Main / HiZ Probe

Current accuracy*
±0.05% of reading ± 0.01% of FS

±0.5% of reading ± 0.1% of FS

±0.5% of reading ± 0.1% of FS

± 0.5% of reading, ± 125 fA
1 µA ... 100 mA

100 mA ... 4 A

10 nA ... 1 µA

< |1 nA| HiZ Probe

Input impedance*
> 10 TΩ || ±5 pF (typical)

> 1000 TΩ || ±1 pF (typical)
Main

HiZ Probe

Input leakage current*
< |200 fA| typ.

< |2 pA| max.

   |10 fA| typ.




HiZ Probe

Impedance range*
1 mΩ to 10 GΩ / 1%

100 mΩ to 10 MΩ / 0.1%

100 mΩ to 100 GΩ / 2%

10 µΩ to 1 GΩ / 2%

1 mΩ to 10 MΩ / 0.2%
Main



HiZ

Gal

Common mode rejection*
> 86 dB @ 10 µHz to 100 kHz

> 66 dB @ 100 kHz to 12 MHz
Input channel phase-tracking accuracy*
±0.05 ° @ 10 µHz to 100 kHz

±0.125 ° @ 100 kHz to 12 MHz
Equivalent effective input noise*
1 µV rms / 100 fA rms @ 1 mHz to 10 Hz

10 µV rms / 15 fA rms @ 1 mHz to 10 Hz
Main



HiZ

*
*Preliminary
Controlled voltage
±5 V

±15 V
Resolution
2.5 nV

7.5 nV
5 V range

15 V range

Accuracy*
±50 µV ± 5 ppm of reading

±200 µV ± 5 ppm of reading
5 V range

15 V range

Integral Nonlinearity*
typ. 1 ppm, max. 2 ppm

typ. 3 ppm, max. 8 ppm
5 V range

15 V range

Compliance voltage
±16 V

±32 V
AC amplitude
0 to 2 V, 24 bit resolution

0 to 6 V, 24 bit resolution
5 V range

15 V range

Bandwidth
15 MHz @ 33 Ω load
IR compensation
auto AC impedance technique

range 0 to 10 MΩ

resolution 0.012%
Small signal rise time
150 ns to 200 µs in 5 steps
automatic selection

Slew rate*
15 MV/s
Phase shift*
10° @ 500 kHz
*
*Preliminary
Maximum current
±4 A
Current range
±1.9 nA to ±4 A in 12 steps
Main
Resolution
32 bit, ±0.2 ppb of FS
Accuracy*
±0.025% of reading ± 0.01% of FS

±0.1% of reading ± 0.05 % of FS
≥ 1 µA to 100 mA

< 1 µA or > 100 mA
*
*Preliminary
Frequency range
10 µHz to 12 MHz
Accuracy*
< 0.0025%
Resolution
0.0025%,

10000 steps/decade
*
*Preliminary
