Corrosion Measurement Cell

KMZ5

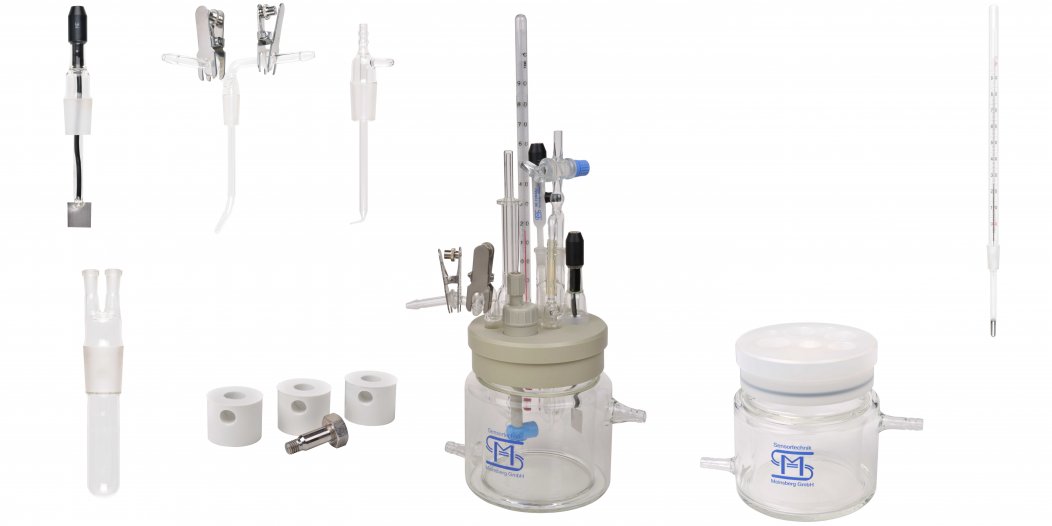

KMZ5 cell
The corrosion measuring cell KMZ5 is a 3-electrodes water-jacketed cell for standard electrochemical corrosion investigations. The cell top of the KMZ5 has standard taper joints (NS) for the insertion of the working and the counter electrodes, as well as the intermediate vessel with the reference electrode. The reference electrode is placed in a liquid junction tube including a "Haber Luggin capillary".

Several specimen holders and additional reference electrodes are available on demand. The delivered specimen holder (AEH) offers conformable sample exchange and is available for different sample diameters.
  • Operating temperature max. 110 °C
  • Water jacketed version of KMZ3
  • Specimen holder: AEH for interchangeable specimen
  • Reference electrode: extra on demand

Specifications

Capacity
max. 500 ml
Cell top
about 120 mm in diameter
Specimen holder
PP, NS-29
Gas in- and outlet
glass pipe, NS-14.5
Reference electrode
KE 10 / NSK 7 (Ag/AgCl)
Liquid junction tube
2 parts, NS-19 / NS-17
with Haber Luggin capillary sleeve junctions
Intermediate vessel
glass, NS-29 / 2 x NS-7
Materials
PP, glass
Cell container
glass, max. 130 mm in diameter
jacket with tube connection
Capacity
max. 500 ml
Cell top
about 120 mm in diameter
Specimen holder
PP, NS-29
Gas in- and outlet
glass pipe, NS-14.5
Reference electrode
KE 10 / NSK 7 (Ag/AgCl)
Liquid junction tube
2 parts, NS-19 / NS-17
with Haber Luggin capillary sleeve junctions
Intermediate vessel
glass, NS-29 / 2 x NS-7
Materials
PP, glass
Cell container
glass, max. 130 mm in diameter
jacket with tube connection
