Photoelectrochemistry & Photovoltaic

CIMPS IPCE

The CIMPS IPCE is an extension to the CIMPS system and includes a tuneable light source (TLS). The CIMPS-IPCE allows IPCE measurements besides standard electrochemical and photoelectrochemical techniques possible with the CIMPS system. The LEDs in TLS with a monochromator provide a wavelength resolution down to 1 nm in visible light range for IPCE measurements.

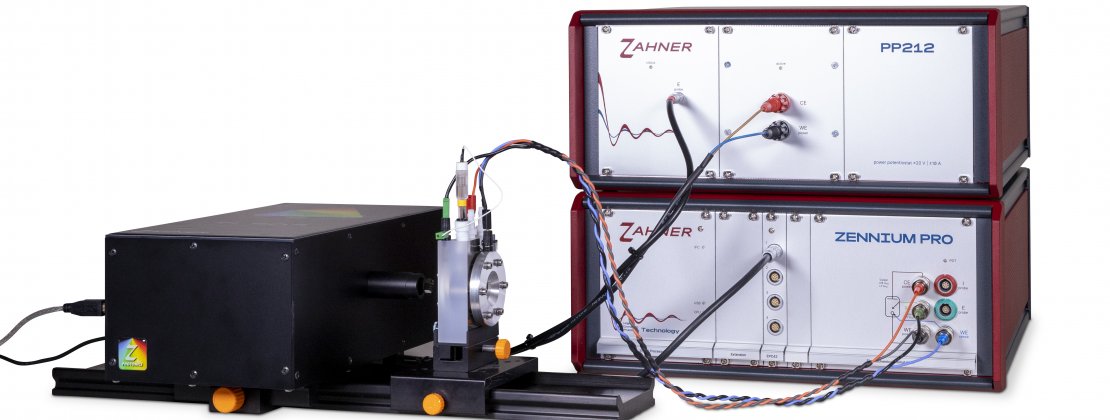

CIMPS IPCE system

Methods

  • Incident photon to current efficiency (IPCE)
  • Chopped light voltammetry (CLV)
  • Controlled intensity modulated photocurrent spectroscopy (controlled IMPS)
  • Controlled intensity modulated photovoltage spectroscopy (controlled IMVS)
  • Maximum power and fill factor measurements
  • Light transient measurements
  • Time domain measurements
  • Standard electrochemical measurements

Technical specifications

ZENNIUM PRO:
Max current: ±3 A

Max voltage: ±5 V / ±15 V

12 current ranges for the optimum current accuracy
PP212:
Power potentiostat for controlling the light intensity
TLS Wavelength range:
365 nm - 1020 nm
Zennium Pro:
Max current: ±3 A

Max voltage: ±5 V / ±15 V

12 current ranges for the optimum current accuracy
PP212:
Power potentiostat for controlling the light intensity
TLS wavelength range:
290 nm - 1020 nm

Tuneable light source

The TLS contains up to 25 or 29 LEDs depending upon the TLS type (without or with UV extension). The TLS also contains a white background light which may be used for the solar cells or photoelectrode with high light intensity threshold for photocurrents. The effect of the constant white background light is eliminated from the IPCE results.

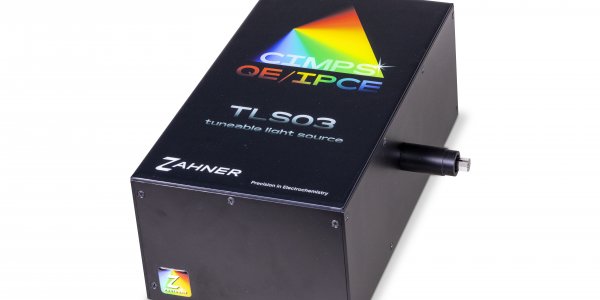

LEDs based tuneable light source

Accessories (LEB)

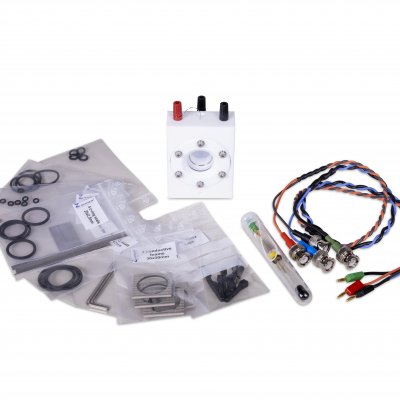

Photoelectrochemical measurements are carried out in a controlled light environment. For this purpose, Zahner designed a light exclusion box (LEB). This LEB can accommodate the PECC cells and the TLS. The LEB also works as a Faraday cage and diminish artefacts for low current measurements.
