Spectral resolved emission measurement

CIMPS-EMIT

CIMPS-EMIT allows integral and spectral resolved light emission measurements and can be used to characterize electroluminescent processes. For integral emission measurements, a NIST traceable calibrated photodetector is used whereas for spectral resolved measurements a UV-VIS-NIR spectrometer is used.

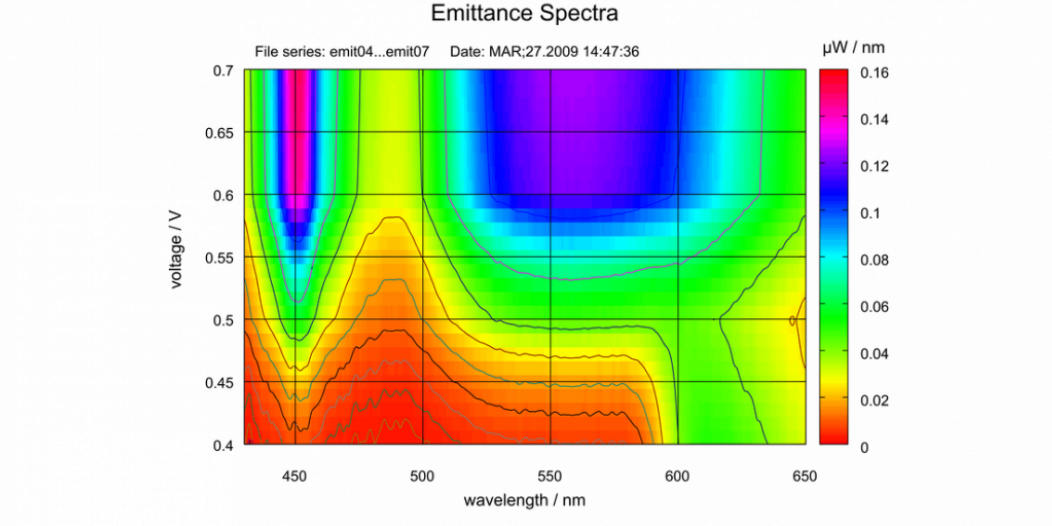

Like CIMPS-ABS, the emission spectrum can be measured for a different bias voltage or current, time, monitoring any other control parameter like temperature, pH, or concentration etc. The emission measurements can also be triggered manually.

CIMPS-EMIT is available in the following two configurations.

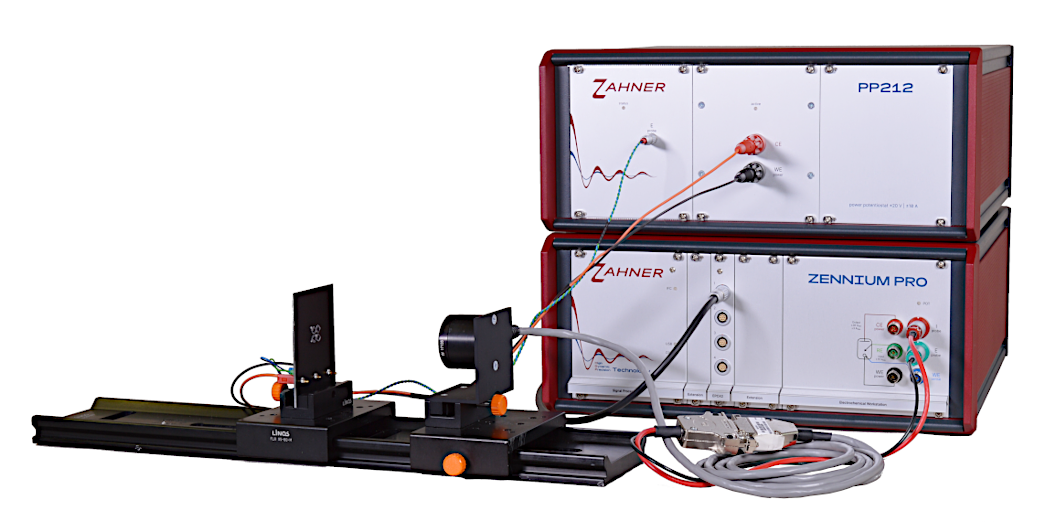

  • CIMPS-EMIT1: For integral emission measurements only, recomended in combination with CIMPS-ABS

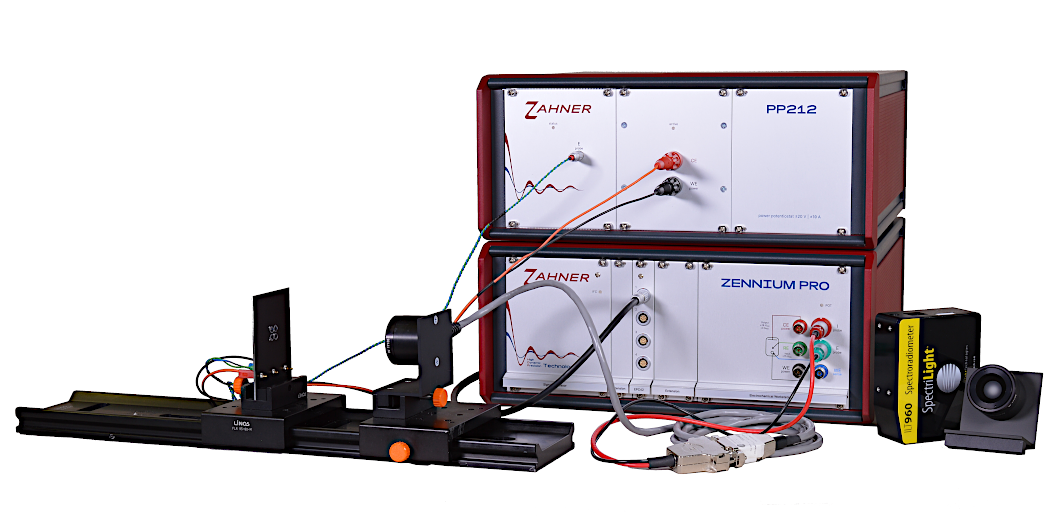

  • CIMPS-EMIT2: For integral & spectral resolved emission measurements

Specifications

SED033 Sensor
Wavelength range:

250 - 1100 nm
NIST traceable calibration
-
Cosine corrected input optics
Software
CIMPS-emit Software
SED033 Sensor
Wavelength range:

250 - 1100 nm
NIST traceable calibration
-
Cosine corrected input optics
Spectrometer ILT960
Integration time: 1 ms - 60 s
Intensity Accuracy:

250 - 450 nm: ±10%

450 - 900 nm: ±5%

900 - 1050 nm: ±10%
Software
CIMPS-EMIT Software
SED033 Sensor
Wavelength range:

250 - 1100 nm
NIST traceable calibration
-
Cosine corrected input optics
Software
CIMPS-emit Software
SED033 Sensor
Wavelength range:

250 - 1100 nm
NIST traceable calibration
-
Cosine corrected input optics
Spectrometer ILT960
Integration time: 1 ms - 60 s
Intensity Accuracy:

250 - 450 nm: ±10%

450 - 900 nm: ±5%

900 - 1050 nm: ±10%
Software
CIMPS-EMIT Software

Downloads

Download the latest manual about ZAHNER CIMPS-emit system...
