Spectral resolved absorption/transmittance measurement

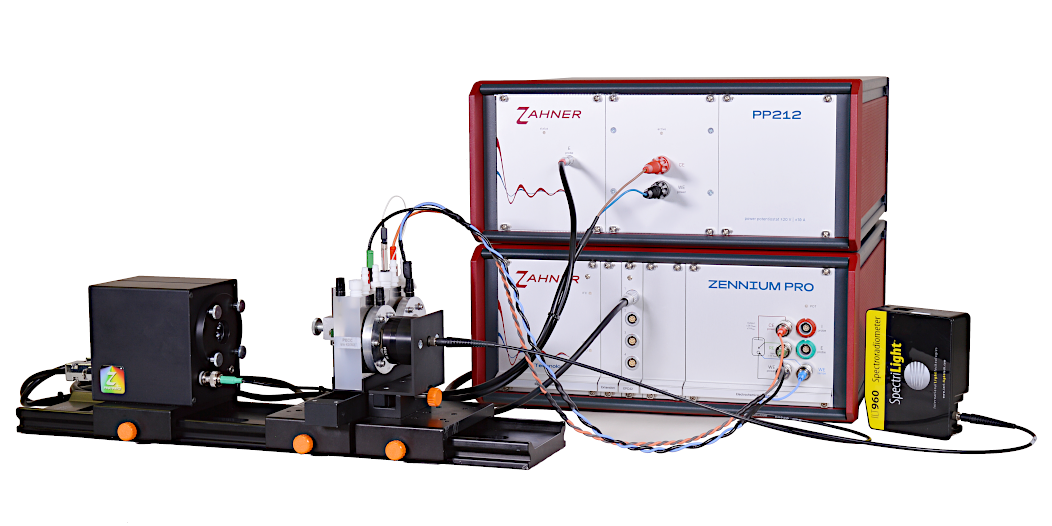

CIMPS-ABS

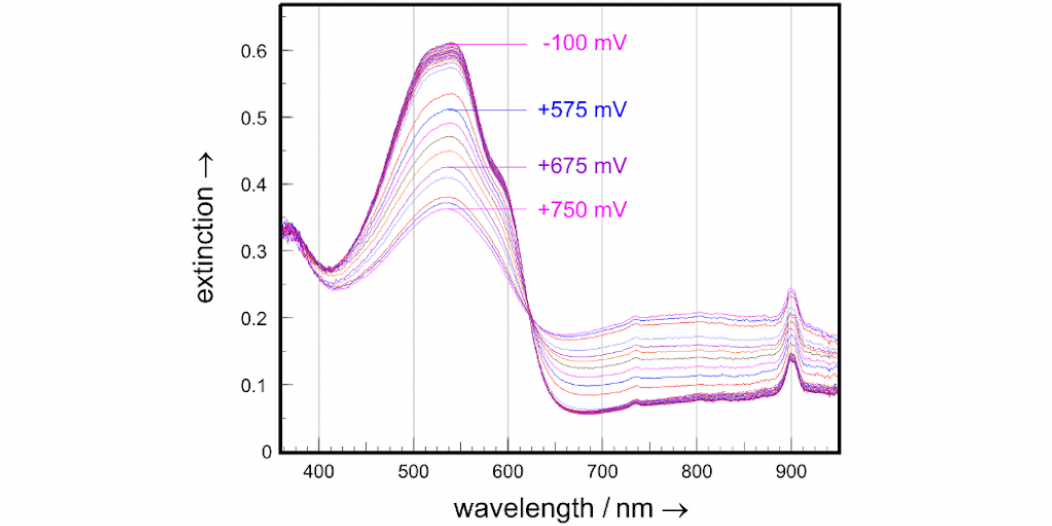

CIMPS-ABS allows spectral resolved transmittance / absorbance measurements to characterize electro-chromic processes. It can be used with an LED-emitter or tungsten lamp. The transmittance / absorbance spectrum can be measured for different bias voltages or currents, time, or any other control parameter like temperature, pH, or concentration etc.
In CIMPS-ABS, two PECC-2 cells are mounted and used sequentially. One PECC-2 cell is used as a reference whereas the other is used for measurement. The reference cell aids in mitigating the artefacts due to light loss via reflection or electrolyte absorption which in turn helps in accurately measuring the absorption spectrum.
In CIMPS-ABS, two PECC-2 cells are mounted and used sequentially. One PECC-2 cell is used as a reference whereas the other is used for measurement. The reference cell aids in mitigating the artefacts due to light loss via reflection or electrolyte absorption which in turn helps in accurately measuring the absorption spectrum.
- ABS-1: Beam diameter = 18 mm
- ABS-1: Wavelength range = 360 - 1000 nm
- ABS-2: Beam diameter = 600 µm
- ABS-2: Wavelength range = 215 - 1100 nm
Specifications
Spectrometer ILT960
Intensity calibrated spectroradiometer
Integration time: 1 ms - 60 s
Integration time: 1 ms - 60 s
Accuracy:
350 - 450 nm: ±10%
450 - 900 nm: ±5%
900 - 1050 nm: ±10%
350 - 450 nm: ±10%
450 - 900 nm: ±5%
900 - 1050 nm: ±10%
Accessories
2 x PECC-2
Light source
WLR02 LED(420 - 730 nm)
Software
CIMPS-abs software
Spectrometer
Ultra low straylight fiber optic spectrometer
Light source
balanced tungsten-deuterium light source (215–1100 nm)
Software
CIMPS abs software
Accessories
2 x PECC-2 Q
Spectrometer ILT960
Intensity calibrated spectroradiometer
Integration time: 1 ms - 60 s
Integration time: 1 ms - 60 s
Accuracy:
350 - 450 nm: ±10%
450 - 900 nm: ±5%
900 - 1050 nm: ±10%
350 - 450 nm: ±10%
450 - 900 nm: ±5%
900 - 1050 nm: ±10%
Accessories
2 x PECC-2
Light source
WLR02 LED(420 - 730 nm)
Software
CIMPS-abs software
Spectrometer
Ultra low straylight fiber optic spectrometer
Light source
balanced tungsten-deuterium light source (215–1100 nm)
Software
CIMPS abs software
Accessories
2 x PECC-2 Q
