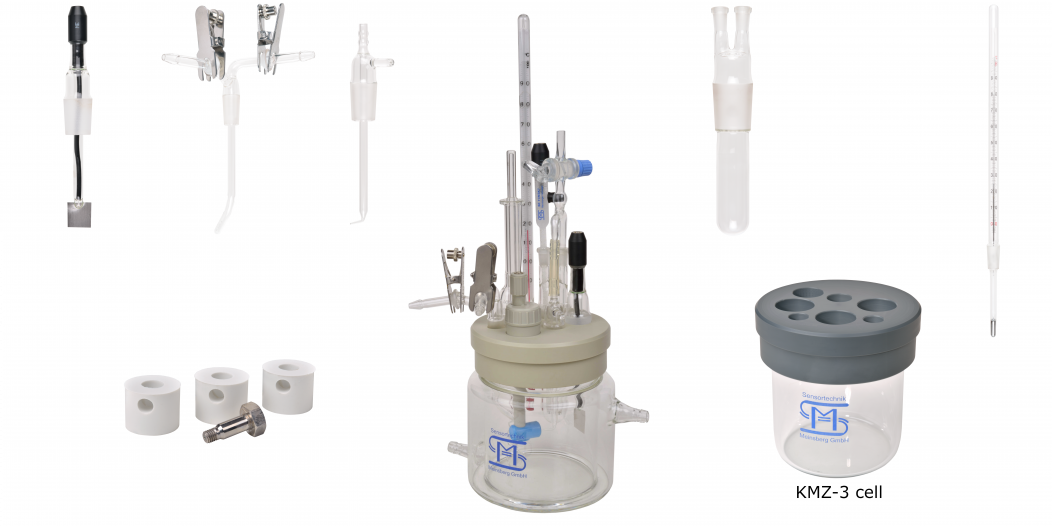

Corrosion measurement cell
KMZ3
The corrosion measuring cell KMZ3 is a 3-electrodes cell for standard electrochemical corrosion investigations. The cell top of the KMZ3 has standard taper joints (NS) for the insertion of the working and the counter electrodes, as well as the intermediate vessel with a reference electrode. The reference electrode is placed in a liquid junction tube including a "Haber Luggin capillary".
Several specimen holders and additional reference electrodes are available on demand. The delivered specimen holder (AEH) offers conformable sample exchange and is available for different sample diameters.
Several specimen holders and additional reference electrodes are available on demand. The delivered specimen holder (AEH) offers conformable sample exchange and is available for different sample diameters.
- Operating temperature max. 50 °C
- Reference Electrode: extra on demand
- Specimen holder: AEH for interchangeable specimen
Specifications
Cell container
glass, max. 130 mm in diameter
Capacity
max. 500 ml
Cell top
about 120 mm in diameter
Operating temperature
max. 50 °C
Specimen holder
PP, NS-29
Counter electrode
NS-24, platinum sheet 4 cm2
Gas in- and outlet
glass pipe, NS-14.5
Reference electrode
KE 10 / NSK 7 (Ag/AgCl)
Intermediate vessel
glass, NS-29 / 2 x NS-7
Materials
PVC, PP, glass
Cell container
glass, max. 130 mm in diameter
Capacity
max. 500 ml
Cell top
about 120 mm in diameter
Operating temperature
max. 50 °C
Specimen holder
PP, NS-29
Counter electrode
NS-24, platinum sheet 4 cm2
Gas in- and outlet
glass pipe, NS-14.5
Reference electrode
KE 10 / NSK 7 (Ag/AgCl)
Intermediate vessel
glass, NS-29 / 2 x NS-7
Materials
PVC, PP, glass
