Compact multichannel potentiostat

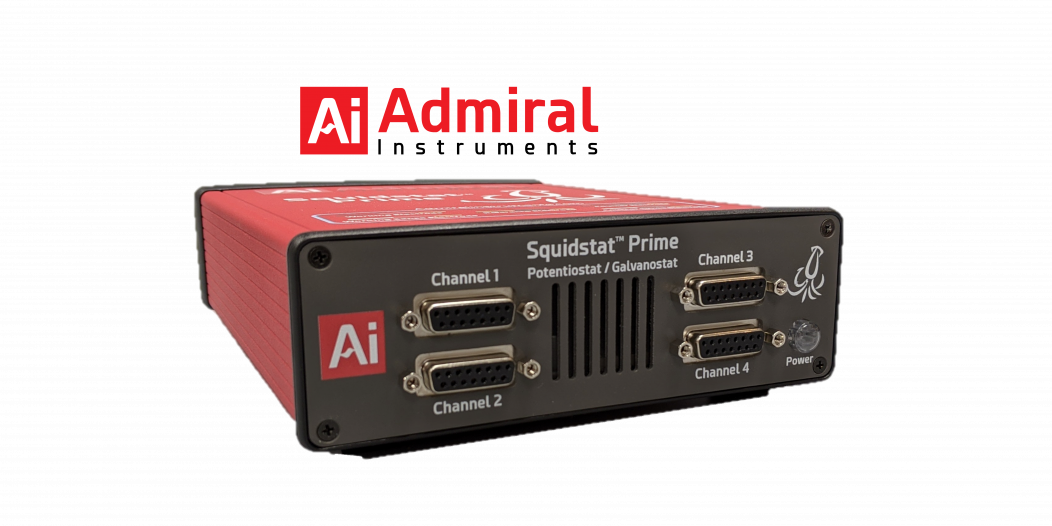

Squidstat Prime

Admiral Squidstat Prime

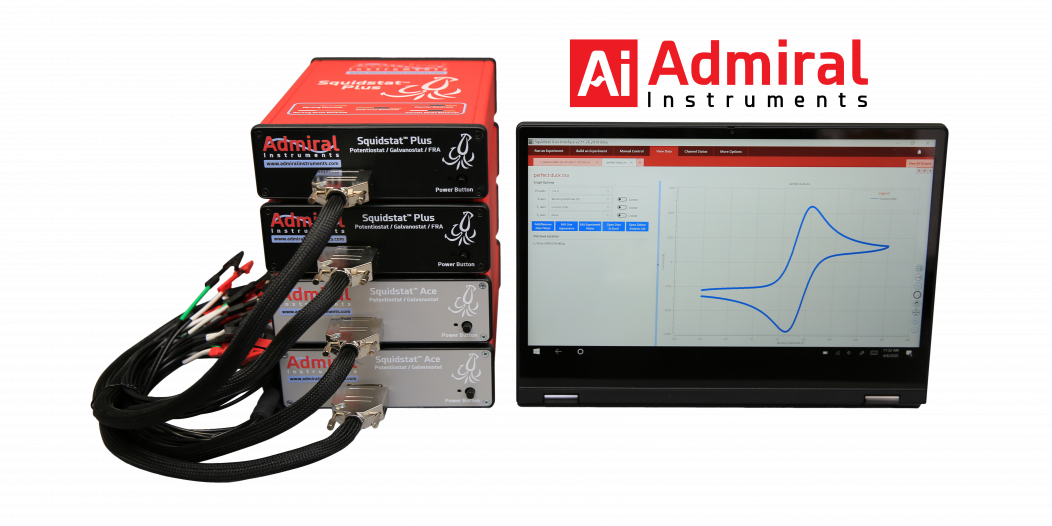

Multichannel setup - Admiral

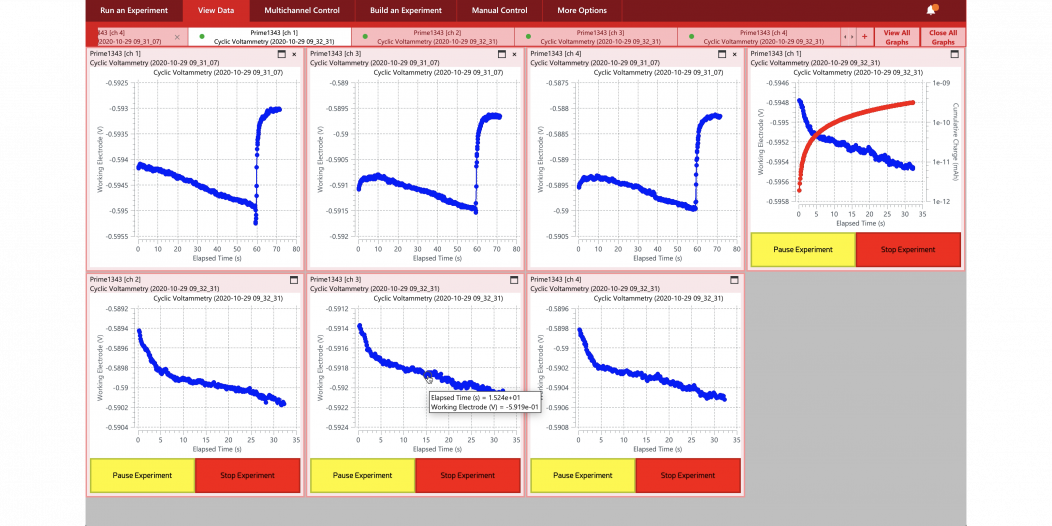

Admiral Software
Squidstat Prime is a compact, light weight and portable entry level potentiostat with multi-channel capabilities for the DC experiments. The Squidstat Prime consists of 4 channels with a maximum current of ±250 mA per channel.

Multiple Squidstat potentiostats can be connected to the same laptop/computer and can be controlled by a single software interface, making it a multichannel system.
  • Max. Current: ±250 mA per channel
  • Max. Voltage: ±10 V
  • ADC/DAC resolution: 16 Bit
  • Switchable floating / grounded mode

Specifications

Channels per unit
4
Operating modes
Pot/Gal/ZRA
Cell connections
2, 3, 4, or 5 electrodes
Slew rate (no load)
200 kV/s
Maximum sampling speed
40,000 samples/s
Input impedance
10 TΩ
Input bias current
10 pA (typical)
Physical dimensions
240 x 170 x 60 mm3
Channel cable length
0.9 m
Computer interface
1 USB per unit
Power supply requirements
100 - 240 VAC, 50 - 60 Hz
Compliance voltage
±10 V per channel
Controlled voltage
±10 V
Applied voltage accuracy
0.1 % of stepoint, 2 mV max accuracy
Applied voltage resolution
300 µV
Measured voltage accuracy
0.1 % of stepoint, 2 mV max accuracy
Measured voltage resolution
300 µV
Max. current
±250 mA per channel
Current ranges
8 ranges (25 nA to 250 mA)
Applied current accuracy
0.1% of range, 1 nA max
Applied current resolution
0.003% of range, 750 fA max
Measured current accuracy
0.1% of range, 1 nA max
Measured current resolution
0.003% of range, 750 fA max
Channels per unit
4
Operating modes
Pot/Gal/ZRA
Cell connections
2, 3, 4, or 5 electrodes
Slew rate (no load)
200 kV/s
Maximum sampling speed
40,000 samples/s
Input impedance
10 TΩ
Input bias current
10 pA (typical)
Physical dimensions
240 x 170 x 60 mm3
Channel cable length
0.9 m
Computer interface
1 USB per unit
Power supply requirements
100 - 240 VAC, 50 - 60 Hz
Compliance voltage
±10 V per channel
Controlled voltage
±10 V
Applied voltage accuracy
0.1 % of stepoint, 2 mV max accuracy
Applied voltage resolution
300 µV
Measured voltage accuracy
0.1 % of stepoint, 2 mV max accuracy
Measured voltage resolution
300 µV
Max. current
±250 mA per channel
Current ranges
8 ranges (25 nA to 250 mA)
Applied current accuracy
0.1% of range, 1 nA max
Applied current resolution
0.003% of range, 750 fA max
Measured current accuracy
0.1% of range, 1 nA max
Measured current resolution
0.003% of range, 750 fA max
