Short stack FC
The unique EXT+ connection of the EL1002 enables high sinking currents, of up to 680 A, by connecting an additional electronic load. This extended system enables EIS measurements up to 1 kW and DC operation up to 68 kW at voltages up to 100 V.
Optional PAD42 card extensions enable synchronous measurements on individual cells within a stack, half-cell characterization, and cross-sectional analysis, allowing more detailed evaluation of fuel cell stacks.
The system can be controlled either through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.

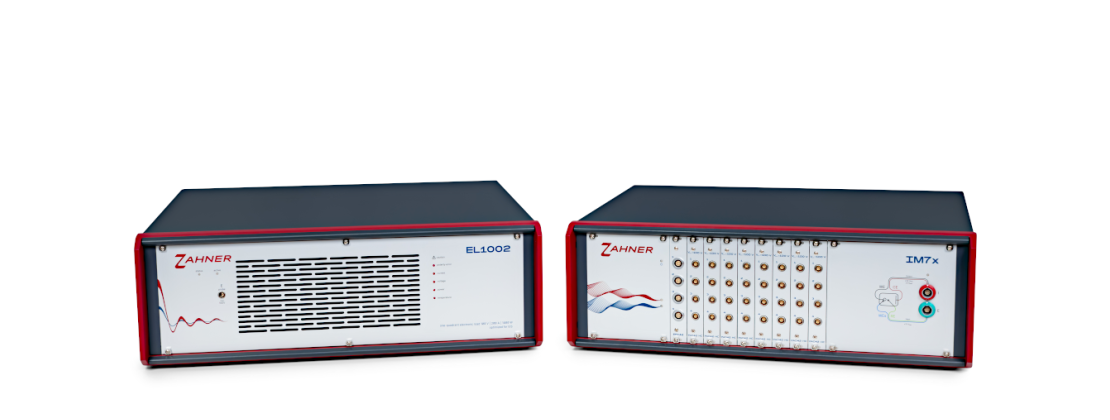

The EL1002 is used as an extension of an IM7 or IM7x potentiostat.
Technische Spezifikationen
In-depth fuel cell stack analysis
The PAD42 cards in the IM7 or IM7x can be used together with EL1002 to perform synchronous measurements for in-depth analysis of the fuel cell stacks.

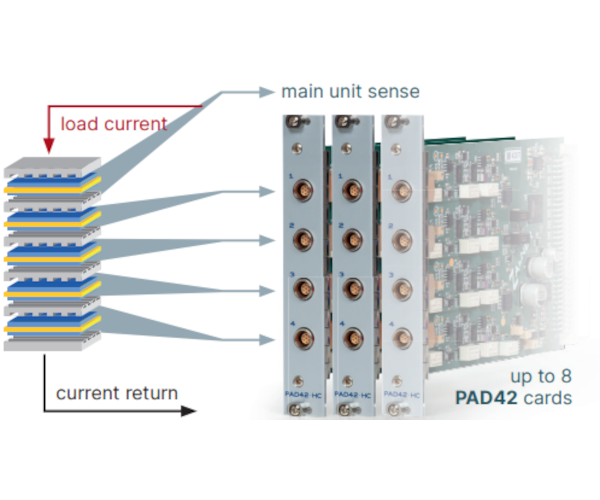

Stack-level analysis
The PAD42 cards allow synchronous EIS or DC measurements on each cell in a stack. With eight PAD42 cards, up to 33 synchronous measurements can be carried out on individual cells in a stack.
Mehr erfahren

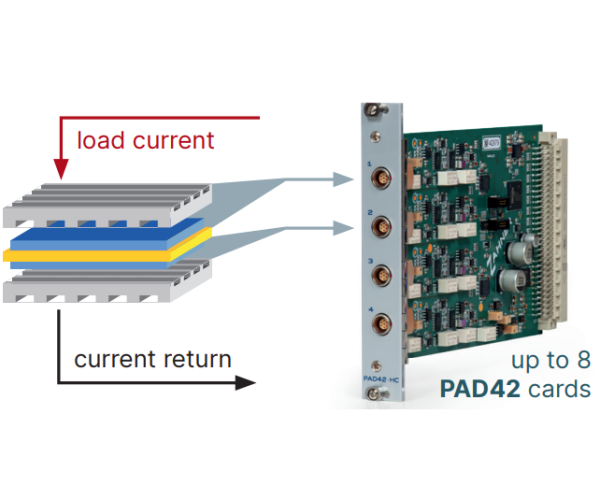

Half-cell analysis
The PAD42 cards in the IM7 or IM7x can be to perform synchronous measurements at each electrode in a reference electrode setup.
Mehr erfahren

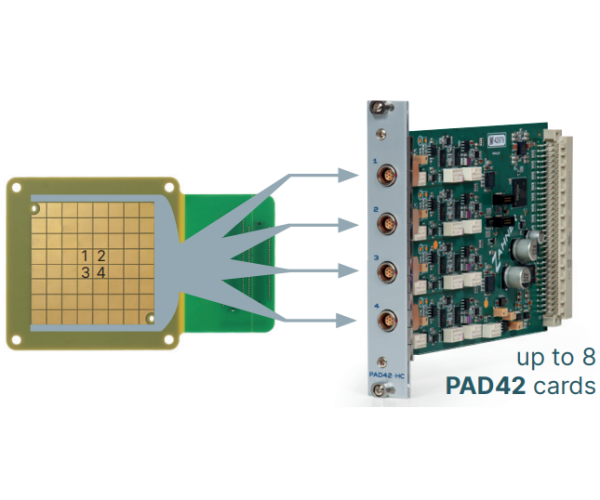

Electrode-level analysis
The PAD42 cards (with segmented shunts) enables cross-sectional analysis of the cell.
Mehr erfahren
Download
Download the PP2x2/PAD42/EL1002 Flyer.
-
PP2X2/PAD42/EL1002 Flyer
PDF Herunterladen
