Single cell FC
Electrochemical impedance spectroscopy (EIS) is a key technique for fuel cell research, for example on PEM and solid oxide fuel cells. It separates the individual loss mechanisms inside a cell, such as ohmic membrane resistance, charge transfer resistance, and mass-transport limitations.
Measured alongside the polarization curve, these contributions show where a single cell loses efficiency under real operating conditions. This makes EIS well-suited to studying membrane hydration, flooding and drying, and catalyst degradation.

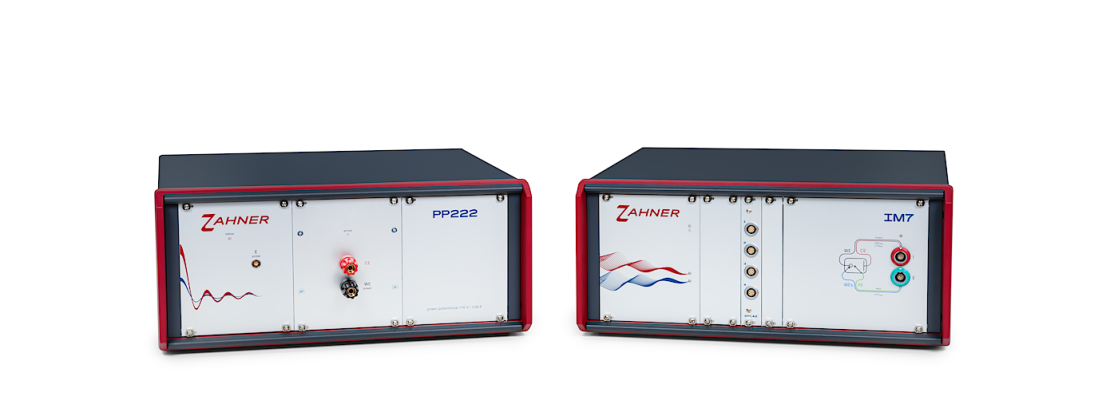

The EIS-capable PP2x2 series power potentiostat provides a flexible 200 W solution for fuel cell characterization. Systems are available with current ranges of ±10 A, ±20 A, or ±40 A.
The optional PAD42 card extension enables synchronous half-cell characterization and cross-sectional analysis of the cell, allowing for more detailed evaluation of the fuel cell.
The system can be controlled through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.
The PP2x2 series power potentiostat is used as an extension of an IM7 or IM7x potentiostat.
Measured alongside the polarization curve, these contributions show where a single cell loses efficiency under real operating conditions. This makes EIS well-suited to studying membrane hydration, flooding and drying, and catalyst degradation.
The EIS-capable PP2x2 series power potentiostat provides a flexible 200 W solution for fuel cell characterization. Systems are available with current ranges of ±10 A, ±20 A, or ±40 A.
The optional PAD42 card extension enables synchronous half-cell characterization and cross-sectional analysis of the cell, allowing for more detailed evaluation of the fuel cell.
The system can be controlled through Zahner Lab software or integrated into automated setups via C++, Python, or WebSockets.
The PP2x2 series power potentiostat is used as an extension of an IM7 or IM7x potentiostat.
Technical specifications
Current range:
±10 A
Voltage range:
±20 V
EIS frequency range:
10 µHz - 400 kHz
Current range:
±20 A
Voltage range:
±10 V
EIS frequency range:
10 µHz - 400 kHz
Current range:
±40 A
Voltage range:
±5 V
EIS frequency range:
10 µHz - 400 kHz
In-depth fuel cell analysis
The PAD42 cards in the IM7 or IM7x can be used together with PP2x2 potentiostats to perform synchronous measurements for in depth analysis of the fuel cell.
Half-cell analysis

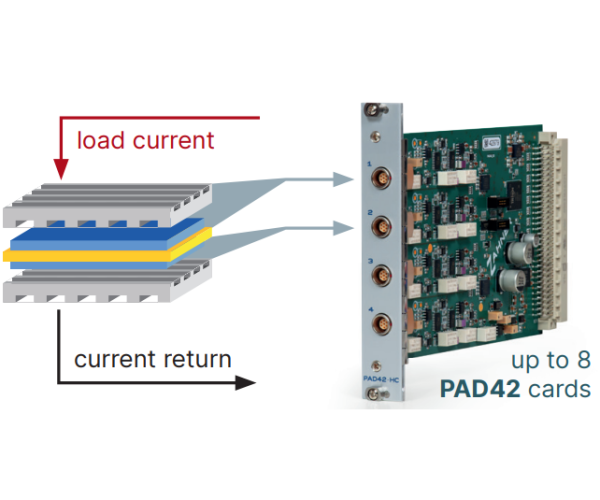

The PAD42 cards in the IM7 or IM7x can be used together with PP2x2 potentiostats to perform synchronous measurements at each electrode in a reference electrode setup.
Learn more
Cross-sectional analysis of a cell

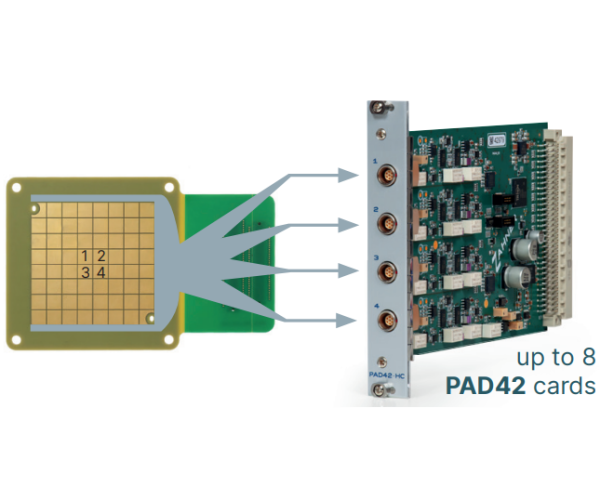

The PAD42 card (with segmented shunts) enables cross-sectional analysis of the cell.
Learn more
Downloads
Download the PP2x2/PAD42/EL1002 Flyer.
-
PP2X2/PAD42/EL1002 Flyer
Download PDF
